Kustom Payment

The Kustom plugin lets your customers pay using credit cards, buy-now-pay-later options, direct debit, and bank transfers — all processed securely through Kustom's payment platform.

Choose between two checkout experiences: KCO (Kustom Checkout embedded directly on your checkout page) or HPP (Hosted Payment Page redirect to Kustom's secure payment page). Both support full and partial refunds, order cancellation, and capture of authorized payments.

Prerequisites​

  • J2Commerce installed and active on your Joomla site
  • A Kustom merchant account (see the setup steps below)
  • An API key from the Kustom Dashboard

Set Up a Kustom Account​

If you already have a Kustom account and API key, skip ahead to Installation & Enabling.

Sandbox Key (Test Site)​

Create a Kustom Account for Developers

tip

IMPORTANT: This section is for developers to test out the plugin on a non-live site in sandbox mode. Once you are ready to go live with the site, you will need to create an account on Kustom's main website and get the production API Password there.

Sandbox keys (for testing): Kustom provides a sandbox environment for testing. Contact Kustom support or check your dashboard for sandbox credentials. No real money is processed in sandbox mode.

Go to https://portal.playground.kustom.co/ and create an account

Click on the verification link in the email that Kustom sends you if you clicked on the Magic Link sign-in

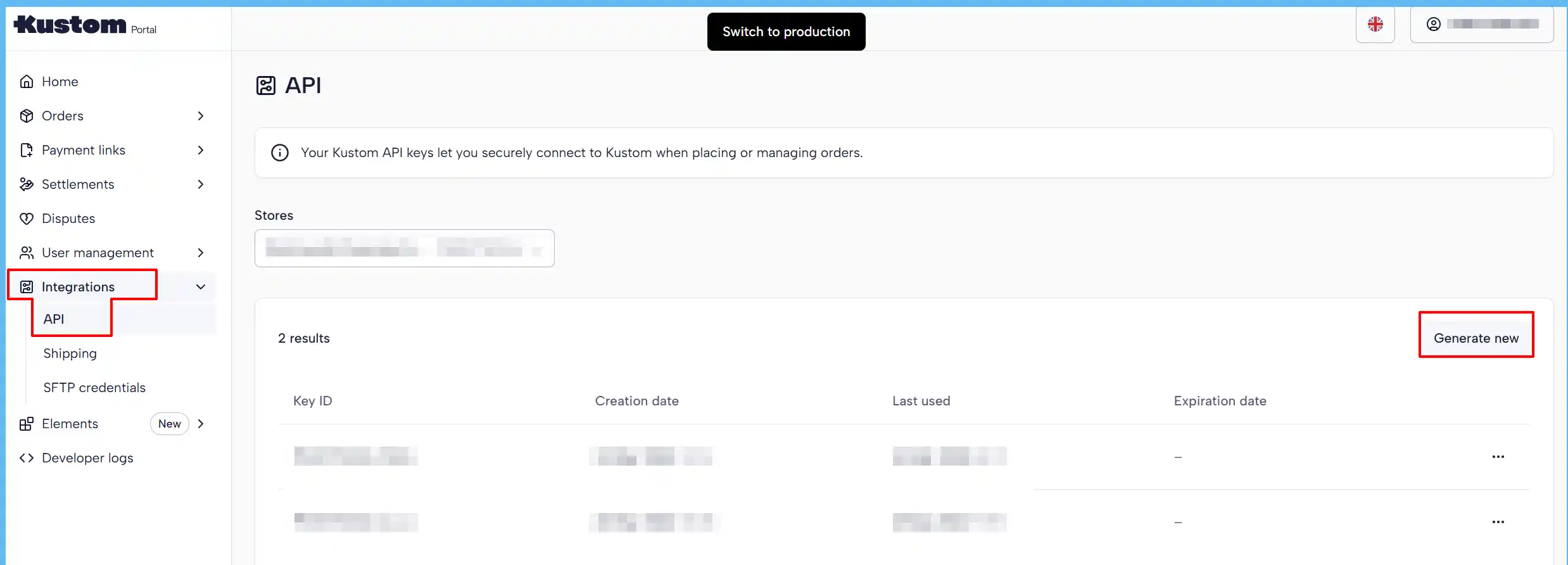

Go to Integrations -> API -> **Generate New. **

tip

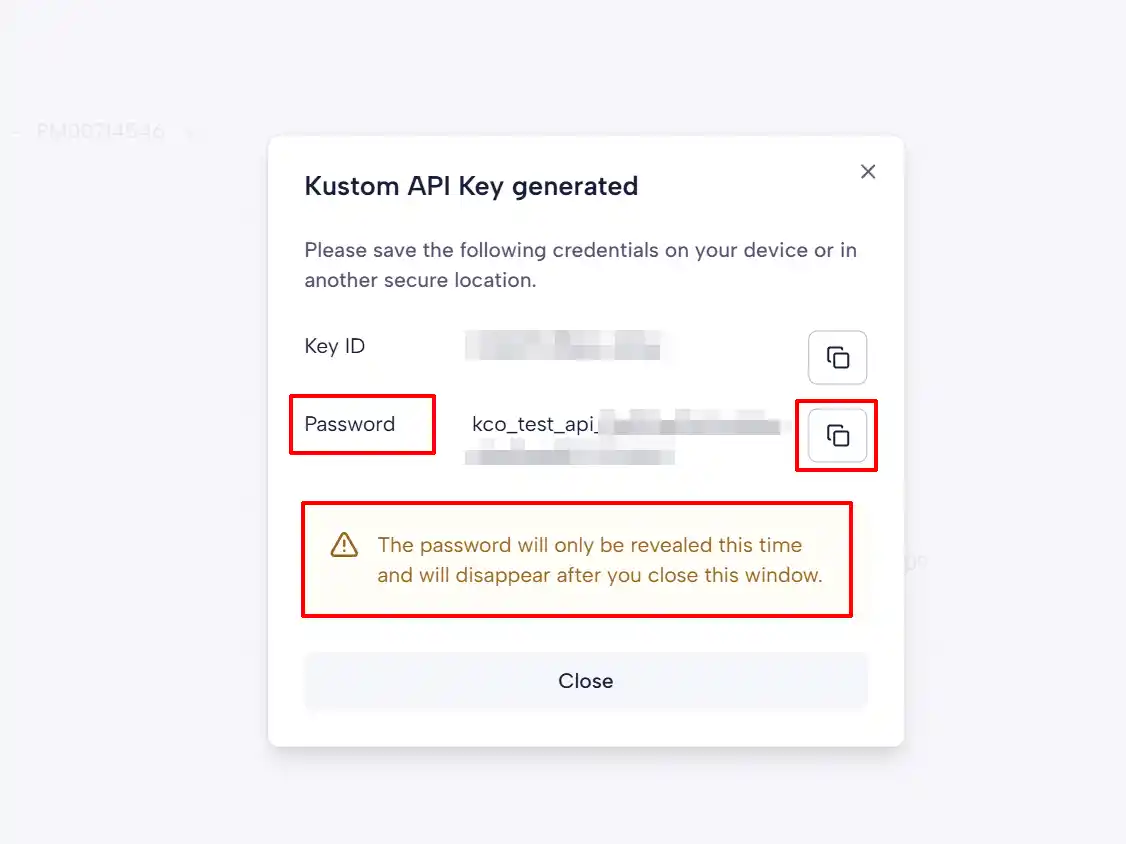

IMPORTANT: Copy the API Key Password, which will appear in a pop-up screen. The Key ID will not work for the plugin. Save the password where you can find it later. The password will start with 'kco_test'.

Production Key (Live Site)​

Create a Kustom Account for Developers

tip

IMPORTANT: You will need to create an account with Kustom's main website to receive the Production API Password for your live site

  1. Go to Kustom and sign up for a merchant account.
  2. Complete the business verification steps Kustom requires (varies by country and business type).
  3. Provide your bank account details for payout.
  4. Wait for Kustom to activate your account.

Get Your API Password​

After your account is active:

  1. Log in to the Kustom Dashboard.
  2. Navigate to Settings -> API Password.
  3. Copy your API Password — this is used to authenticate API requests from your store.

Purchase and Download​

This plugin is a separate add-on available from the J2Commerce Extensions Store. It does not come with the core J2Commerce 6 component.

Step 1: Go to our J2Commerce website -> Payment Plugin

Step 2: Locate the Payment_Kustom Plugin -> click View Details -> Add to cart -> Checkout.

Step 3: Go to your My Downloads under your profile button at the top right corner and search for the app. Click Available Versions -> View Files -> Download Now

Installing the Plugin​

You can install this Kustom Payment plugin using the Joomla installer. The following steps help you with a successful installation.

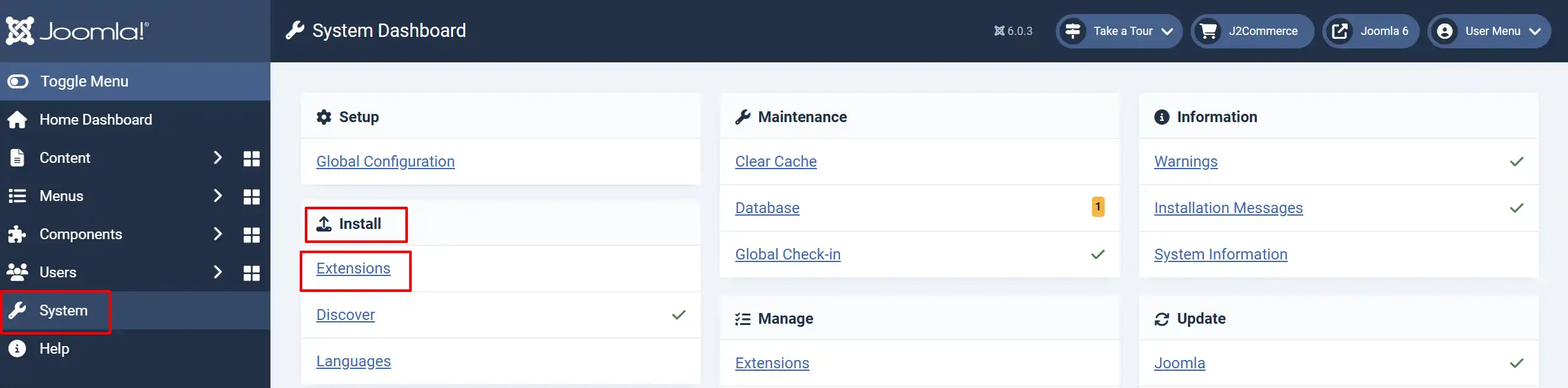

In the Joomla admin, go to System -> Install -> Extensions

Upload the Payment_Kustom ZIP file or use the Install from URL option.

Enable the Plugin ​

Once you have installed the extension, you will need to enable it. There are two ways you can access the extension.

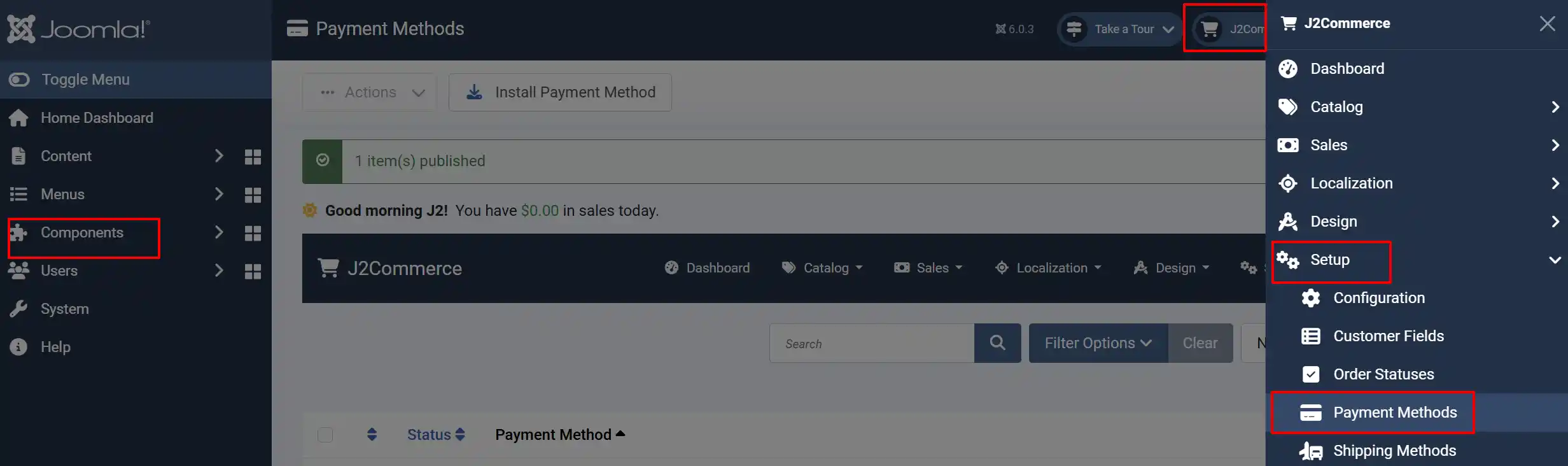

Option A: Go to the J2Commerce icon at the top right corner -> Setup -> Payment Methods

Option B: Go to Components on the left sidebar -> J2Commerce -> Dashboard -> Setup -> Payment Methods

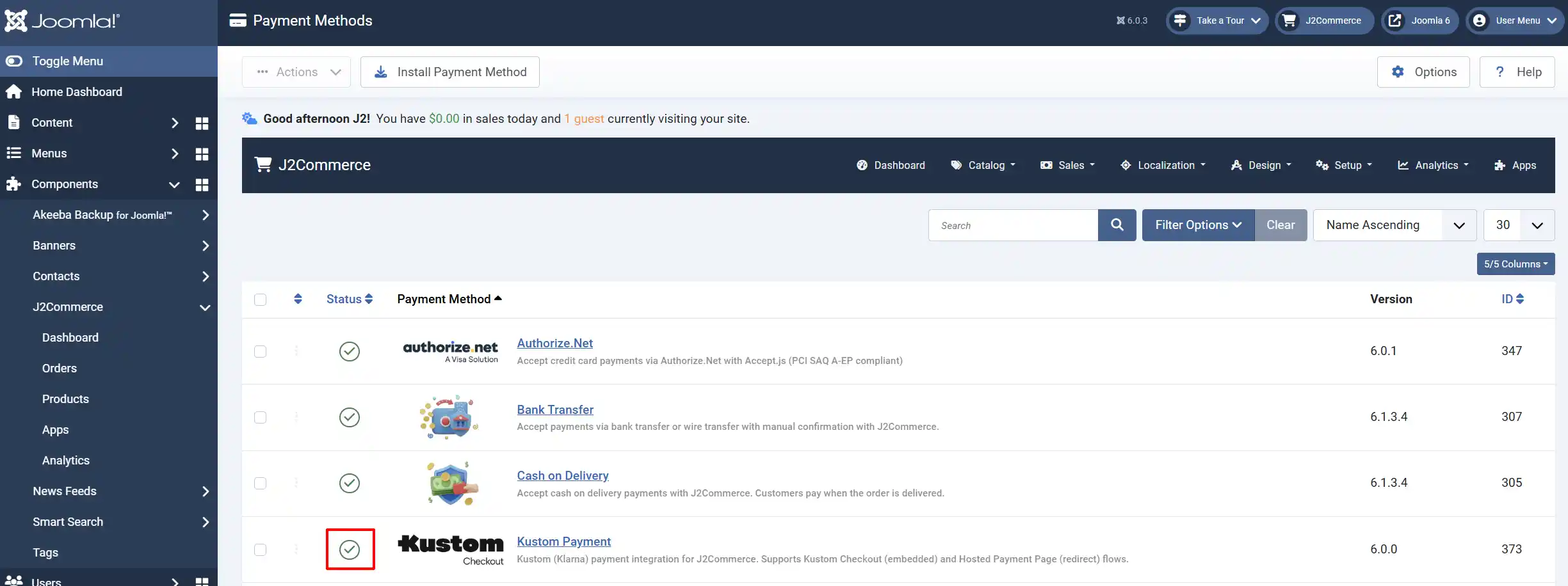

Look for Kustom, click the X, and it will turn into a green checkmark. It is now enabled and ready for setup.

Configuring the Plugin​

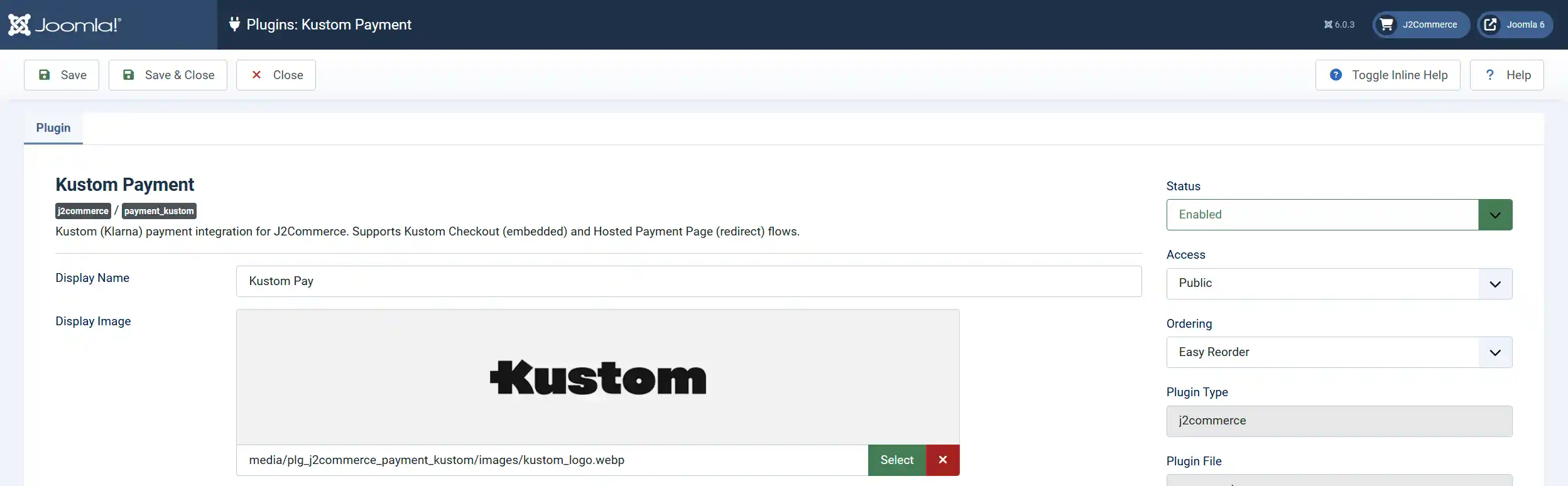

After enabling the plugin, click the Kustom Payment title to open the settings.

tip

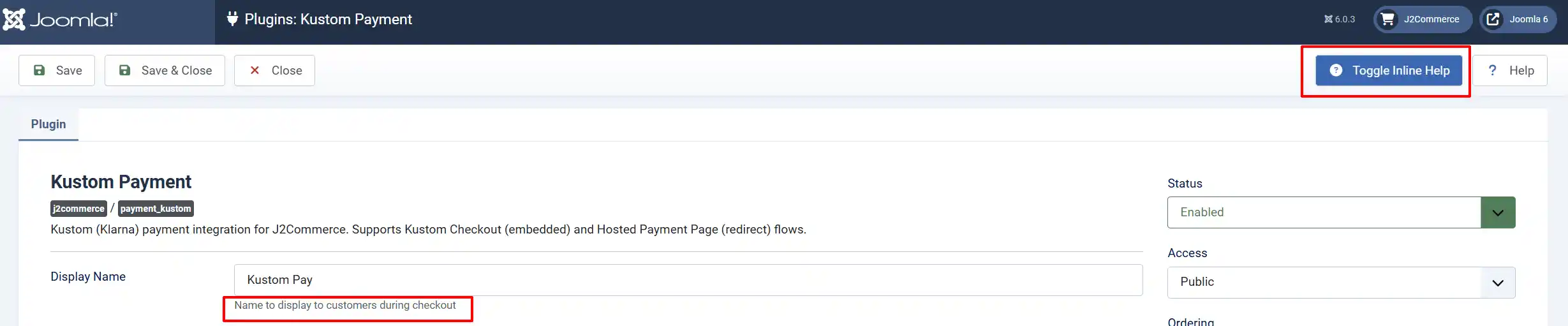

Tip: Click on the Toggle Inline Help button on any app/plugin you install and it will show a description below each section. See image below

Display Settings​

Display Name: The label shown to customers at checkout

Display Image: Optional logo or image shown next to the payment option at checkout

Checkout Type​

Choose how customers interact with the payment form:

Checkout Type: How the payment form is displayed: Select the payment experience. KCO embeds a checkout widget inline; HPP redirects the customer to Kustom's hosted payment page.

  • KCO (Kustom Checkout): Payment form loads directly on your checkout page. Customers complete payment without leaving your site. Recommended for most stores.

  • HPP (Hosted Payment Page): Customers are redirected to a Kustom-hosted payment page. After completing payment, they are redirected back to your site. Use this if you want Kustom to handle the entire payment UI.

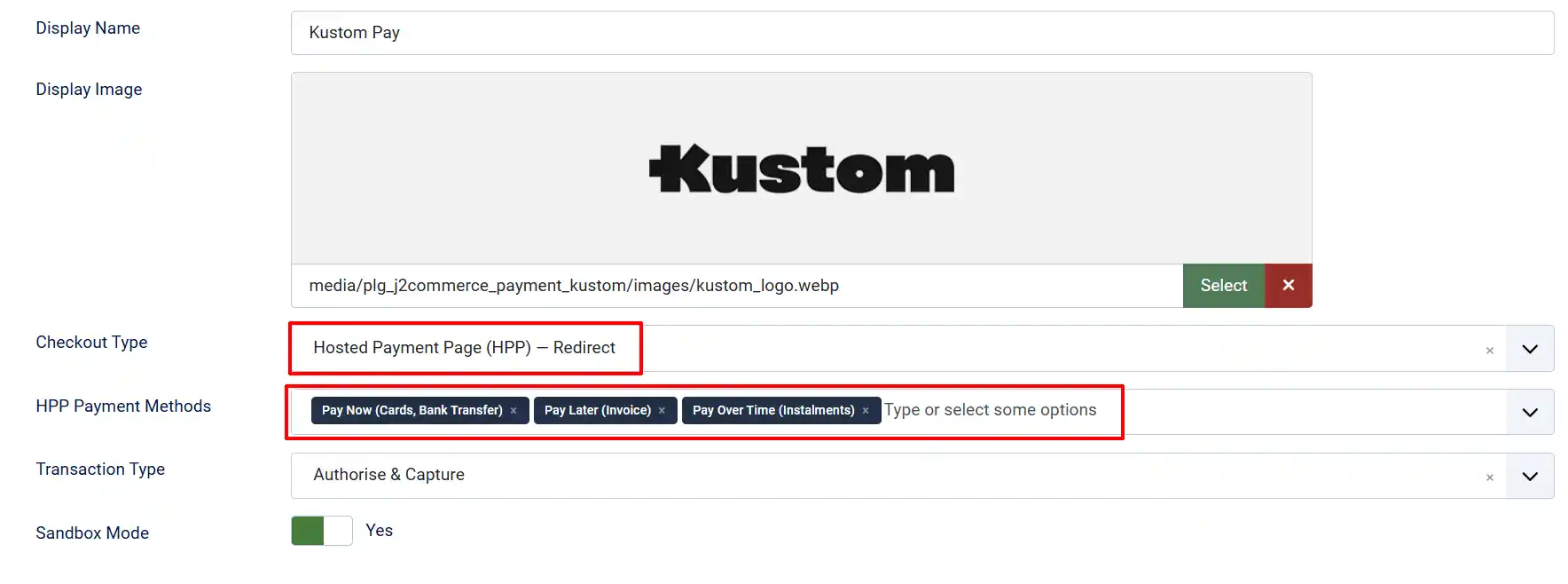

HPP Payment Methods​

tip

This setting appears when the checkout type is set to HPP. Select which payment methods to offer customers: See examples below

  • PAY_NOW: Immediate payment via card or bank

  • PAY_LATER: Buy now, pay later options

  • PAY_OVER_TIME: Installment payment plans

  • DIRECT_DEBIT: Bank account direct debit

  • DIRECT_BANK_TRANSFER: Traditional bank transfer

Select multiple methods by holding Ctrl (Windows) or Cmd (Mac) while clicking.

tip

Note: Available payment methods vary by country and merchant account configuration. Contact Kustom support to enable specific methods for your account.

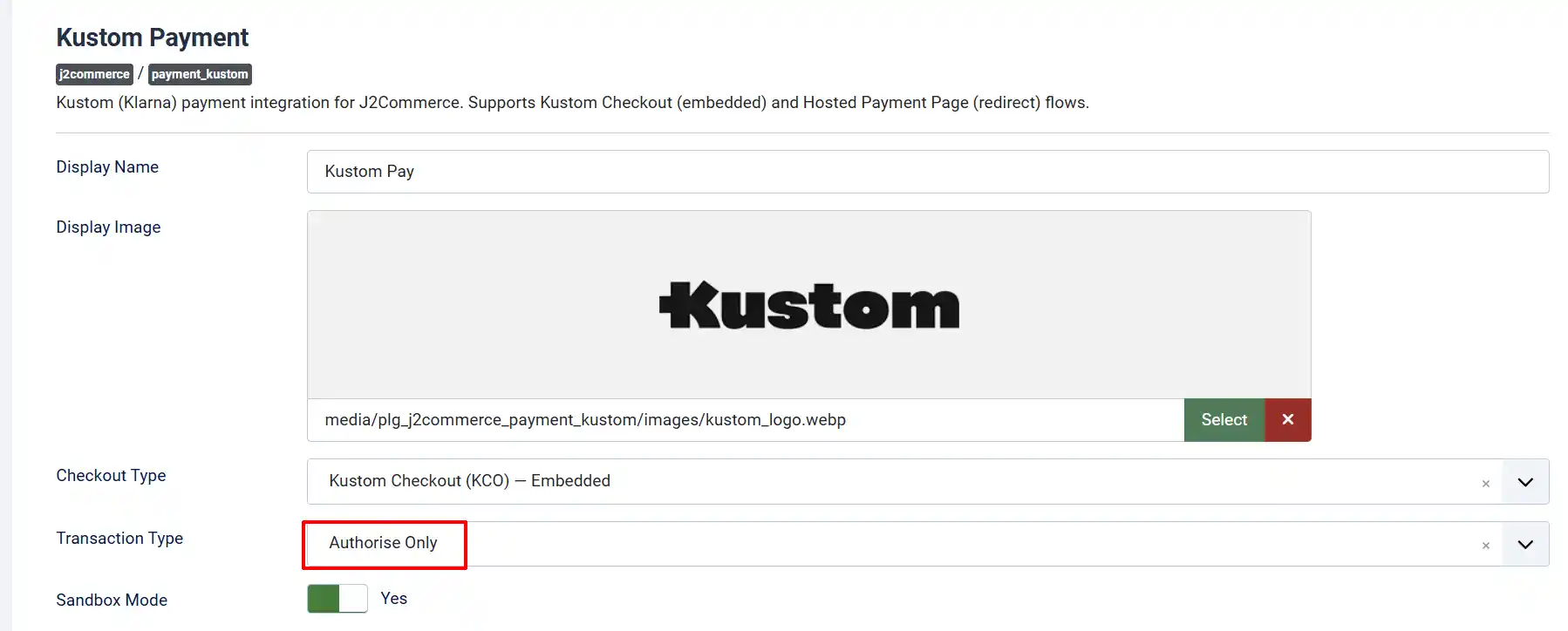

Transaction Type​

Transaction Type: When payment is captured from the customer's account

  • Auth + Capture: Payment is authorized and captured immediately when the customer completes checkout. The order status updates to Confirmed right away.

  • Auth Only: Payment is authorized but not captured. You must manually capture the payment from the order admin page within 7 days. Use this for pre-orders, backorders, or when you need to verify stock before charging.

Sandbox Mode​

Sandbox: Select 'Yes' to use Kustom's test environment. No real money is processed.

Turn sandbox mode on while you are setting up and testing. Turn it off before you go live.

When sandbox mode is active, a warning banner appears on the J2Commerce dashboard so you cannot accidentally forget.

Once you turn it off, don't forget to paste your production key instead of your sandbox key

Sandbox API Credentials​

These are used when Sandbox is set to Yes.

Sandbox API Password: Your sandbox API Password for testing

Live API Credentials​

These are used when Sandbox is set to No.

Production API Password: Your live API Password from the Kustom Dashboard

Template Style: Choose the frontend template layout for checkout forms and saved card displays. Options depend on your site's template framework.

Available subtemplates: Bootstrap 5 and UIkit. Leave blank to use the default layout. If your Joomla template is UIkit-based (e.g., YOOtheme Pro), select the UIkit subtemplate for consistent styling.

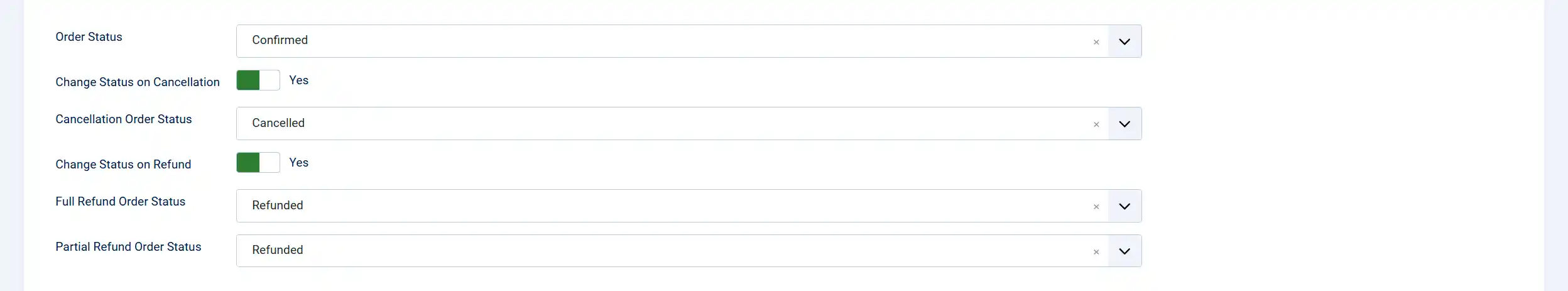

Order Status​

tip

Tip: If you want refunded or voided orders to move to a specific status (e.g., "Cancelled" or "Refunded"), enable the relevant toggle and select the desired status. If left disabled, only the transaction record is updated — the order status stays unchanged.

Order Status: The J2Commerce order status to assign when payment is successfully processed.

Set this to whichever status makes sense for your workflow. A common choice is Confirmed (immediately after payment) or Processing (if you have a manual review step).

Cancellation Settings

Change Status on Cancel: Automatically change order status when an order is cancelled

Cancel Order Status: The status to set when an order is cancelled (shown when Change Status on Cancel is 'Yes')

Refund Settings

Order Status on Refund:

  • When set to 'No', the order status is automatically changed when a refund is processed.

  • When set to 'Yes', the order status to set when a refund is processed. A common choice is Refunded or Cancelled.

Refund Order Status: The status to set when a full refund is processed (shown when Change Status on Refund is )

Partial Refund Order Status: The status to set when a partial refund is processed (shown when Change Status on Refund is 'Yes')

info

NOTE: If the order status you want isn't listed in the dropdown menu, you can create a new one by going to J2Commerce -> Setup -> Order Statuses

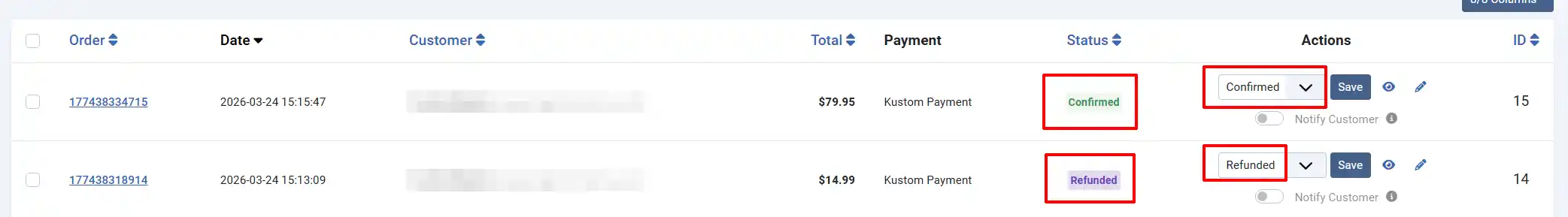

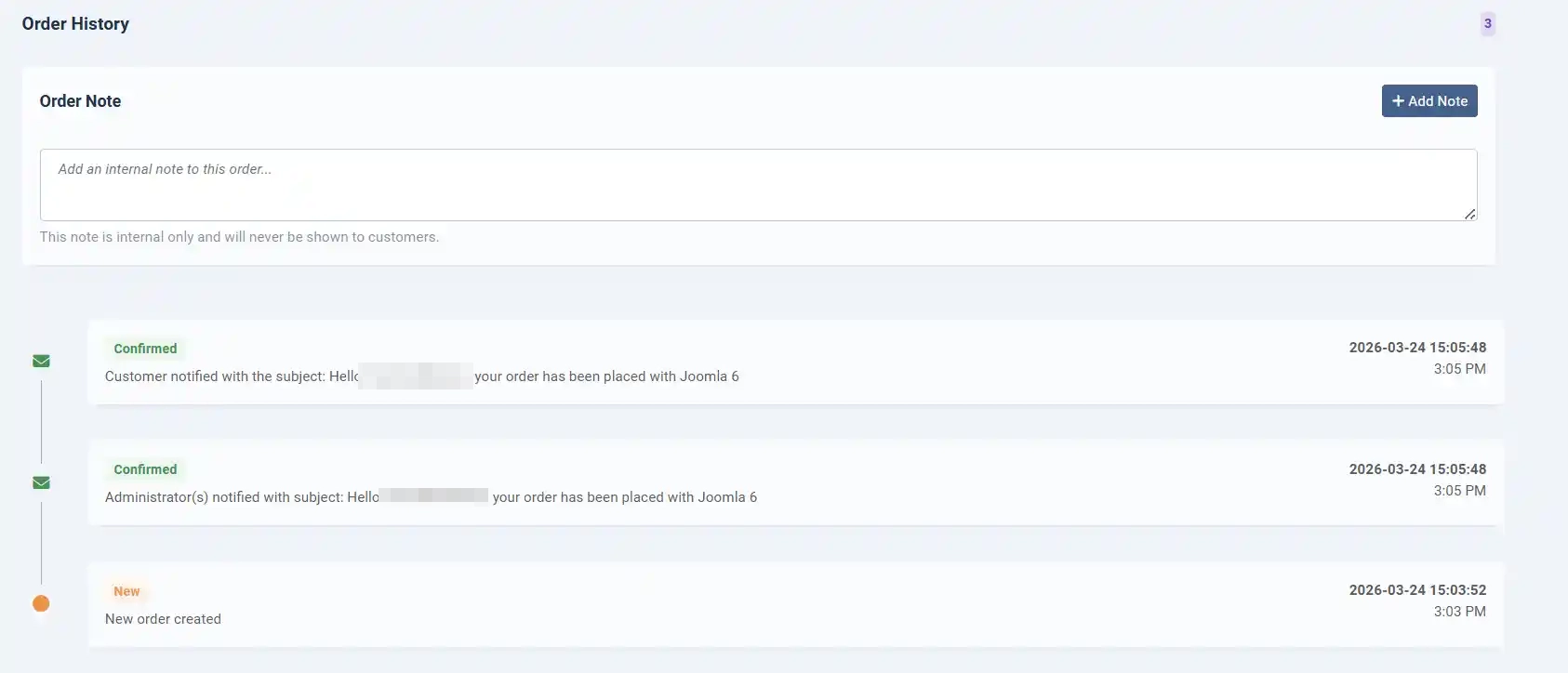

Order Status View​

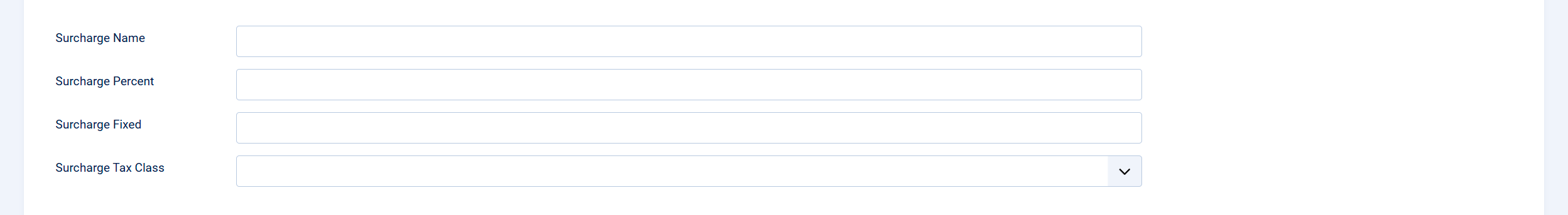

Surcharge​

Add an optional surcharge to orders paid via Kustom. This is useful if you want to pass on Kustom's processing fee to customers (check your local laws before doing this).

Surcharge Name: Label shown to customers for the surcharge (e.g., "Processing Fee")

Surcharge Percent: Percentage of the order subtotal added as a surcharge

Surcharge Fixed: Fixed amount added as a surcharge

Surcharge Tax Class: Tax profile to apply to the surcharge amount

You can combine a percentage and a fixed amount — both will be added together.

Geo-Zone Restriction​

Geo-Zone Restriction: Only show this payment method for customers in the selected geozone

Leave this empty to show Kustom to all customers regardless of location.

Order Amount Limits​

Minimum Subtotal: Leave empty or set to 0 to allow all order amounts. Set a minimum subtotal required for this payment method to be available.

Maximum Subtotal: Leave empty or set to -1 to allow all order amounts. Set a maximum subtotal limit for this payment method to be available.

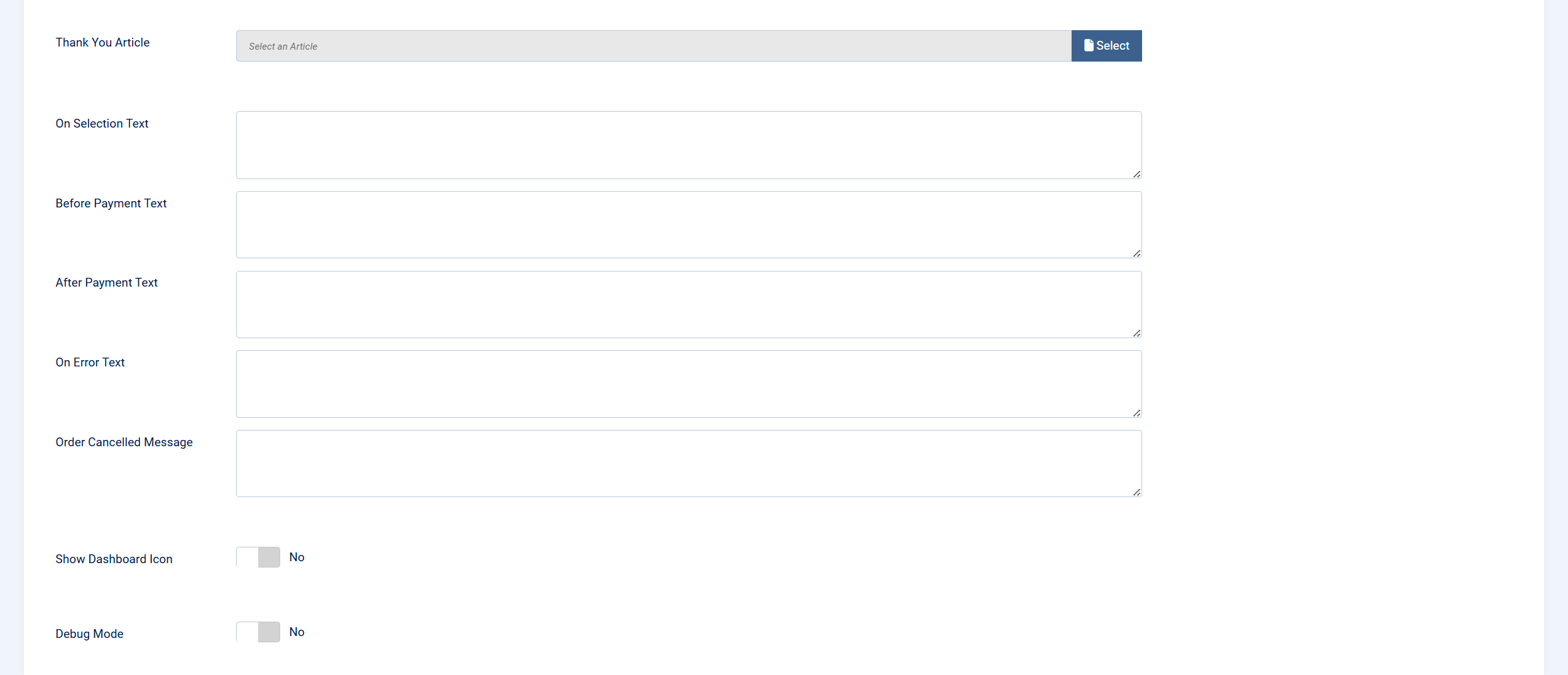

Thank You Page​

Thank You Article: Select a Joomla article to display after a successful payment. This is shown on the confirmation page in addition to the standard confirmation message.

Custom Messages​

These text fields let you customize messages shown to customers at different points in the payment process.

On Selection: When the customer selects Kustom as their payment method

On Before Payment: On the payment page before the customer clicks Pay

On After Payment: On the confirmation page after a successful payment

On Error Payment: When a payment error occurs

On Cancel Payment: When the customer cancels payment and returns to the cart

Dashboard Icon​

Show Dashboard Icon: Show a shortcut icon for Kustom on the J2Commerce dashboard

Dashboard Icon Label: Label for the dashboard icon (only visible when Show Dashboard Icon is 'Yes')

Debug Mode​

Write a detailed Kustom API activity to administrator/logs/payment_kustom.php and the browser console

tip

Tip: Enable debug mode only while troubleshooting. Disable it in production — logs can grow large quickly.

Checkout Experience​

tip

Tip: If you want to offer more payment options other than Credit Card, ie, Klarma, Google Pay, you need to enable them all on the Kustom.co website.

Frontend View​

KCO (Kustom Checkout) Mode​

When the Checkout Type is set to KCO:

  1. The Kustom payment form loads directly on your checkout page.
  2. The customer enters payment details and clicks Pay.
  3. Payment is processed without leaving your site.
  4. The customer sees the confirmation page.

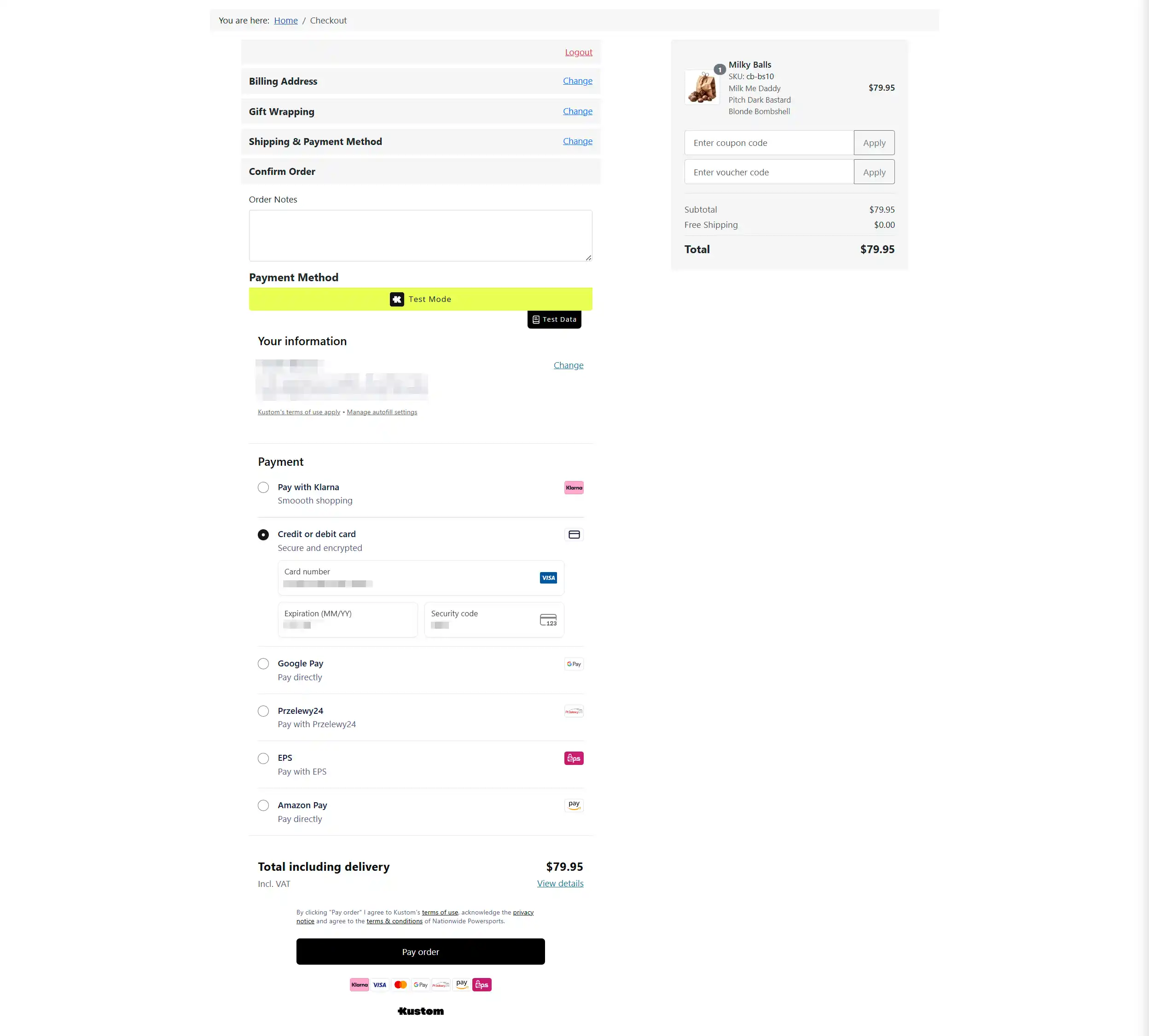

Frontend - KCO View in Sandbox Mode

HPP (Hosted Payment Page) Mode​

When Checkout Type is set to HPP:

  1. The customer is redirected to a Kustom-hosted payment page.
  2. They select their preferred payment method (if multiple are enabled).
  3. They complete payment on Kustom's secure servers.
  4. After payment, they are redirected back to your confirmation page.

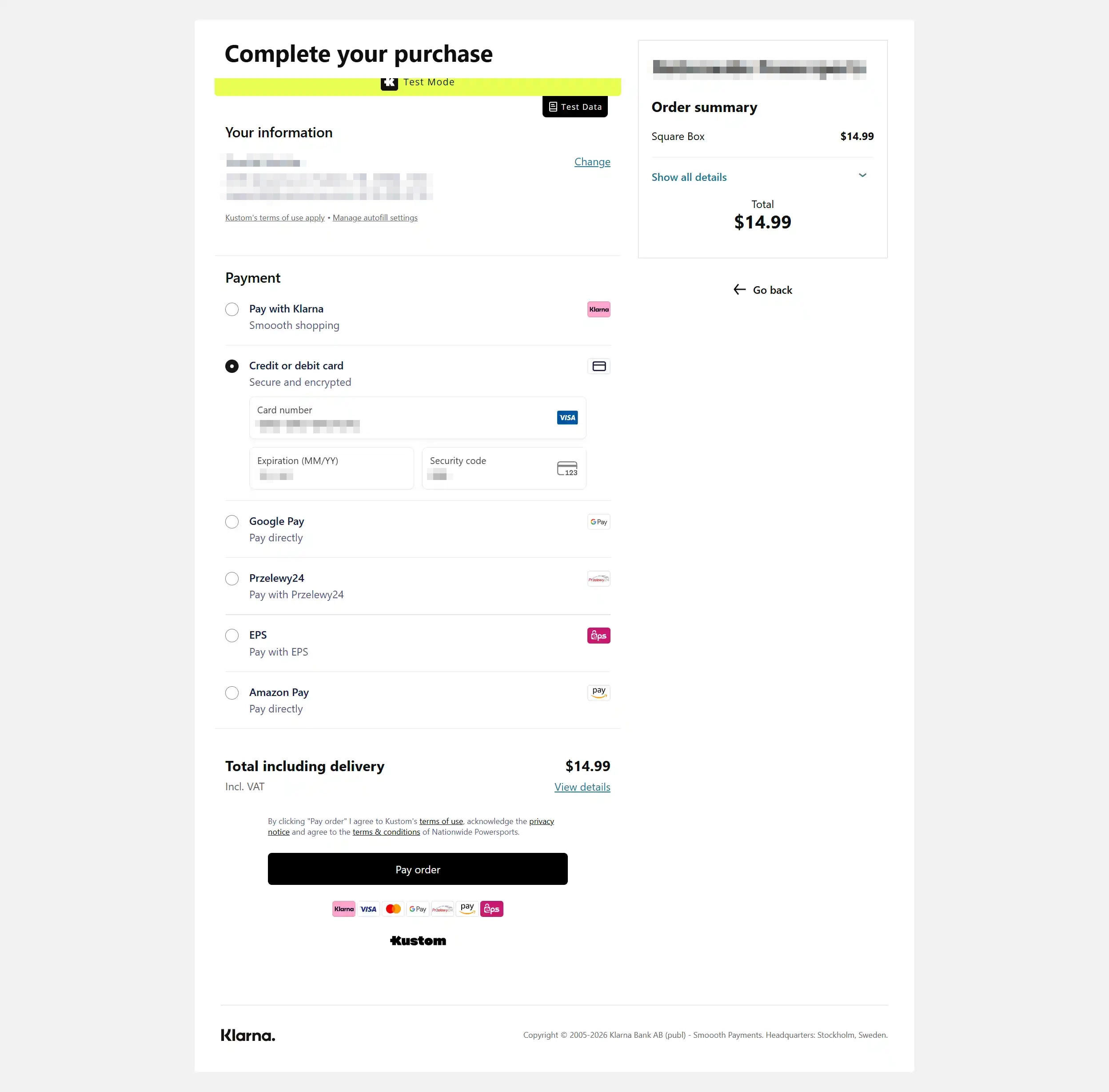

Frontend - HPP View in Sandbox Mode

Order Management​

Once a customer pays, J2Commerce records the transaction details:

  • Order status is updated to the status you configured (default: Confirmed).
  • Transaction ID — the Kustom Order ID — is stored with the order.
  • Transaction status — Captured, Authorized, Cancelled, or Refunded — is tracked.
  • Order history is updated with a payment note.

Capture Authorized Payments (Auth Only Mode)​

If you set Transaction Type to Auth Only, payments are authorised but not captured.

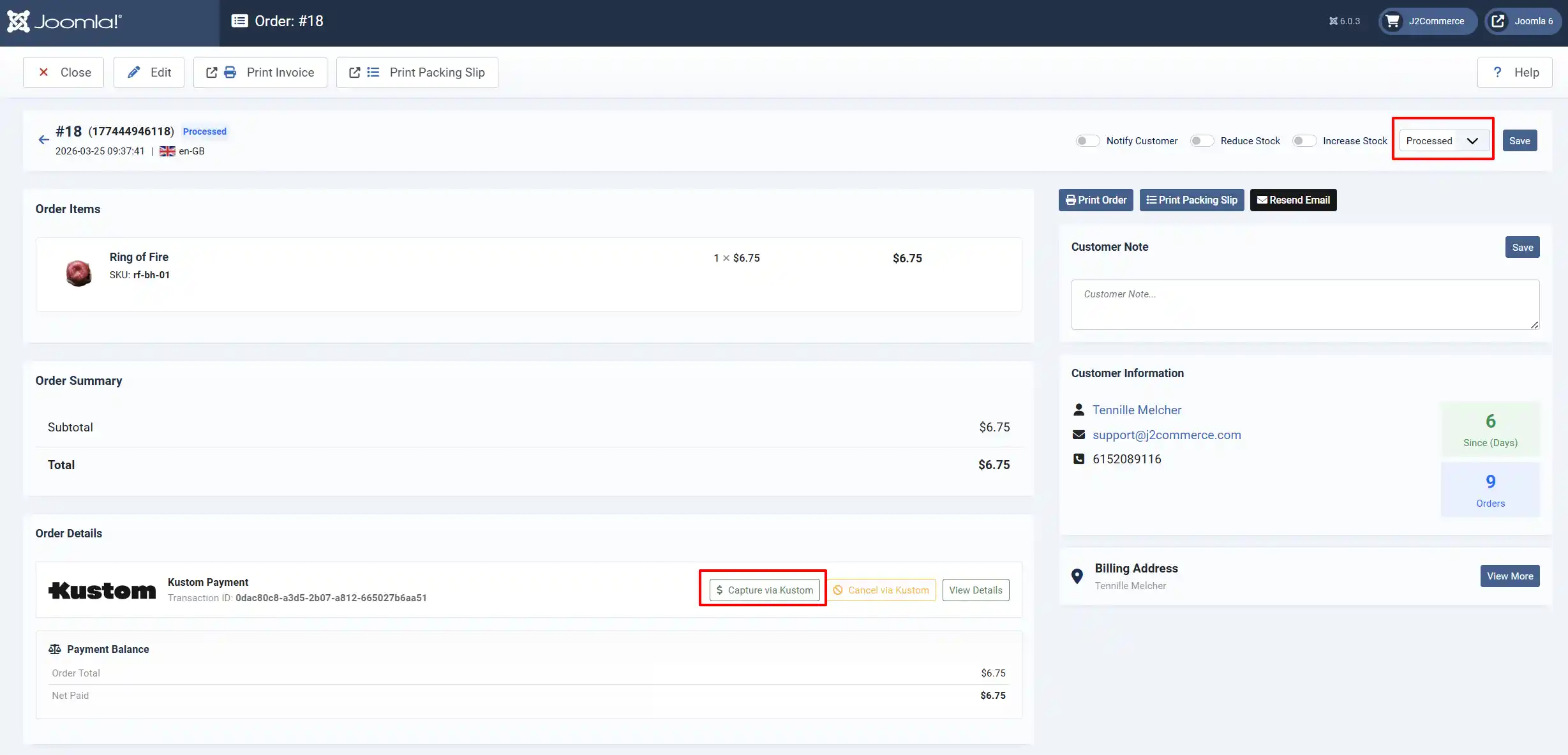

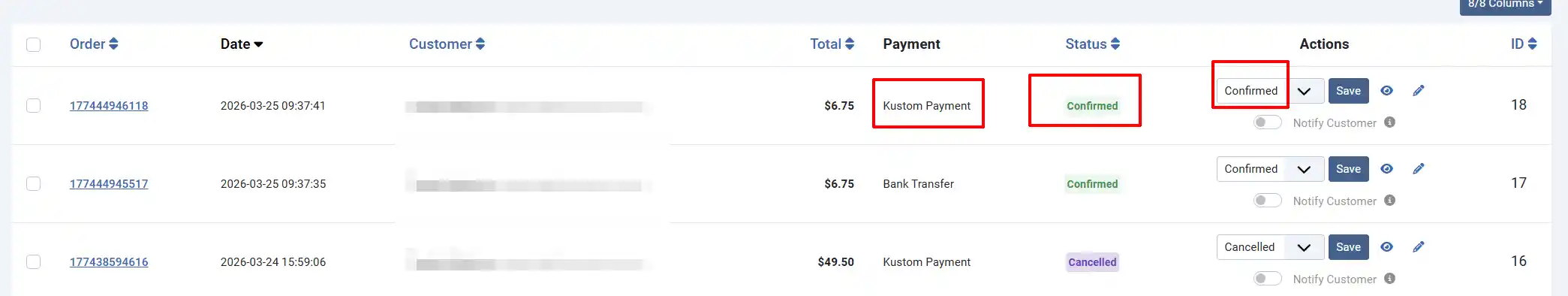

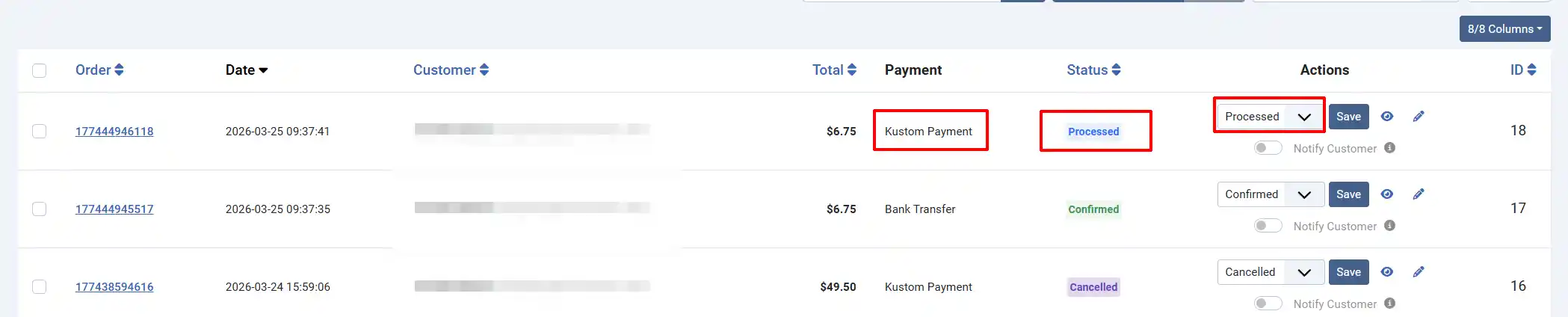

It will initially show the status as 'Processed' until it's captured. The status will change to Confirmed afterwards. To capture:

  1. Go to J2Commerce -> Orders and open the order.
  2. Look for the Order Details section.
  3. Click Capture to capture the authorized amount.

The order status updates to the configured payment status.

You can also cancel an authorization to release the hold on the customer's funds without charging them.

Refunds​

You can issue a full or partial refund directly from the order in the J2Commerce admin:

Go to J2Commerce -> Orders and open the order.

Look for the Order Details section.

Click Refund via Kustom.

The refund is sent to Kustom via the API. If you enabled Change Status on Refund, the order status updates automatically.

Full vs Partial Refunds​

  • Full refund: Refunds the entire order amount. Sets transaction status to "Refunded."
  • Partial refund: Refunds a portion of the order amount. Sets transaction status to "Partially Refunded."

Kustom tracks the total refunded amount across all partial refunds.

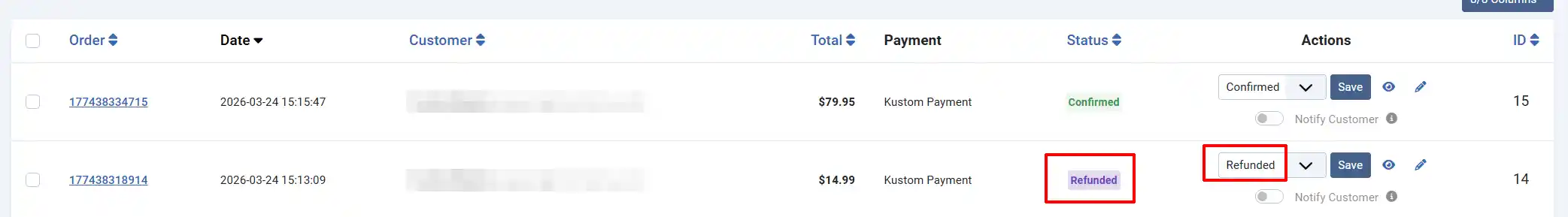

Once the refund has been confirmed, the status you set in the plugin will automatically change in the order section

Callbacks (Push Notifications)​

Kustom sends push notifications to your store when order status changes. These are handled automatically — no additional configuration is required.

EventWhat happens in J2Commerce
Order authorizedOrder status updated to Pending
Order capturedOrder status updated to Confirmed
Order cancelledOrder status updated to Cancelled (if enabled)
Order refundedOrder status updated to Refunded (if enabled)

The callback URL is automatically configured in the plugin. Kustom sends notifications to this URL when any status change occurs.

Enable Payment Methods in Kustom Dashboard​

Payment methods available in HPP mode are configured in your Kustom Dashboard:

  1. Log in to the Kustom Dashboard.
  2. Go to Settings -> Payment Methods.
  3. Enable or disable payment methods for your account.
  4. Some methods may require additional verification — follow the prompts.

Important: Payment methods available vary by:

  • Your merchant account country
  • Your customer's location
  • Your account configuration

Contact Kustom support to enable specific payment methods for your account.

Before Going Live Checklist​

Before accepting real payments, confirm the following:

  • Sandbox is set to No
  • Your live Production API Password is entered
  • You have placed a test order using a real payment method with a small amount
  • Debug Mode is set to No
  • Payment methods you want to offer are enabled in your Kustom Dashboard (for HPP mode)
  • You have tested the capture, cancel, and refund flows

Troubleshooting​

"API Password is missing or invalid" error​

Cause: The API Password is missing or incorrect.

Solution:

  1. Open the Kustom plugin settings.
  2. Make sure you have entered an API Password for the correct mode (live or sandbox).
  3. If using live mode, verify Sandbox is set to No.
  4. If using sandbox mode, verify Sandbox is set to Yes and you have entered a sandbox API Password. Do not enter the API Key from Kustom. It has to be the "API Password" in order for it to connect.
  5. If you can't find the API Password on the Kustom site, you can click 'Regenerate New' and a new one will appear in a pop-up window

Payment succeeds but order stays Pending​

Cause: The order status did not update correctly, possibly due to a callback failure.

Solution:

  1. Check that callbacks are reaching your server by enabling Debug Mode.
  2. Verify your server is publicly accessible (Kustom cannot send callbacks to localhost).
  3. Check administrator/logs/payment_kustom.php for callback errors.
  4. Manually update the order status if needed.

Capture button does not appear in admin​

Cause: The order is not in an authorized state, or the transaction status is not "Authorized."

Solution:

  1. Open the order and check the Transaction Status field.
  2. Only orders with Transaction Type set to Auth Only and Transaction Status of "Authorized" show the Capture button.

If the payment was already captured, the Capture button will not appear.

Refund fails with an error​

Cause: The order has already been fully refunded, or the Kustom Order ID is missing.

Solution:

  1. Open the order and check that a Transaction ID is recorded.

  1. If the Transaction ID is empty, the payment may not have been processed correctly. Check the debug log.
  2. Log in to your Kustom Dashboard and verify the transaction status there.
  3. Check if the order has already been fully refunded in Kustom.

Dashboard shows "Kustom is in Sandbox mode" warning​

Cause: Sandbox is set to Yes.

Solution: If you are ready to go live, open the Kustom plugin settings and switch Sandbox to No, then enter your live API Password.

HPP payment methods not showing at checkout​

Cause: No payment methods are selected in the HPP Payment Methods setting, or methods are not enabled in your Kustom Dashboard.

Solution:

  1. Open the Kustom plugin settings.
  2. Verify the checkout type is set to HPP.
  3. Check that at least one payment method is selected in HPP Payment Methods.

  1. Log in to your Kustom Dashboard and ensure the selected methods are enabled for your account.

Customer sees "Payment Failed" but money was taken​

Cause: A communication error occurred after payment was processed but before the order was updated.

Solution:

  1. Check administrator/logs/payment_kustom.php for errors during the callback.
  2. Look up the order by Transaction ID in the J2Commerce admin.
  3. Manually update the order status to Confirmed.
  4. Contact Kustom support if the issue persists.

Support​

For help with the Kustom plugin:
