PAYONE Commerce Platform Payment

The PAYONE Payment plugin connects your J2Commerce store to the PAYONE Commerce Platform, a European payment infrastructure used by thousands of merchants across the EU. It accepts major credit and debit cards (Visa, Mastercard, American Express, and others) and handles the full payment lifecycle — authorization, capture, void, and refund — directly from your store's admin.

Two integration modes are available, so you can choose whether customers stay on your page or are redirected to a PAYONE-hosted payment page:

• Hosted Checkout Page (redirect) — the customer is sent to a secure PAYONE-hosted page to enter their card details and then returned to your store. Your servers never handle raw card numbers, which keeps your PCI compliance requirements at the simplest level (SAQ-A). This is the default and recommended option.
• Hosted Tokenization Page (iframe) — a secure card-input iframe from PAYONE is embedded directly on your checkout page. Card data is tokenized by PAYONE's servers; your store only ever receives a token. This mode also enables saved cards for returning customers.

The plugin also supports:

• Pre-authorization — reserve funds on a card without immediately charging the customer, then capture from the order screen when you are ready to ship
• Saved cards — returning customers can pay faster with a stored card (Hosted Tokenization mode only)
• Subscription renewals — saved card tokens can be charged automatically when you use the J2Commerce Subscriptions add-on
• Capture, void (cancel), and refund directly from the J2Commerce order detail screen
• Sandbox / test mode — test every part of the checkout flow without processing real payments

Requirements

• Joomla 6.x
• J2Commerce 6.x
• PHP 8.3 or later
• A PAYONE Commerce Platform merchant account (pre-production or live)
• Your store must be accessible over HTTPS
• A publicly reachable URL for webhook delivery (webhooks cannot reach localhost)

Get Your PAYONE Credentials

Before configuring the plugin, you need several pieces of information from the PAYONE Commerce Platform portal (the merchant management interface at the PAYONE website). Have the portal open in another browser tab while you work through the steps below.

What you need

Credential	What it is
API Key ID	An identifier for the API key pair — used in request signatures so PAYONE knows which key was used to sign the request
API Secret	The secret half of the API key pair — never shared publicly; used to generate the request signature
PSPID (Merchant ID)	Your unique merchant identifier on the PAYONE platform — it appears in all API URL paths
Webhook Key ID	An identifier for the webhook signing key — used when J2Commerce verifies that an incoming notification came from PAYONE
Webhook Secret	The secret used to verify the HMAC-SHA256 signature (X-GCS-Signature) on each incoming webhook notification

PAYONE uses separate credentials for the pre-production (test) environment and the live environment. Gather both sets before configuring the plugin.

tip

The test (pre-production) API host is payment.preprod.payone.com. The live host is payment.payone.com. The plugin switches between them automatically based on the Sandbox / Test Mode setting — you do not need to enter the host URLs manually.

Register a webhook endpoint

PAYONE sends real-time notifications to your store when payment events occur (authorization succeeded, capture completed, refund processed, and so on). You must register your store's webhook URL in the PAYONE portal.

Your webhook URL is:

https://your-site.com/index.php?option=com_ajax&group=j2commerce&plugin=payment_payone&format=raw&task=webhook

Replace your-site.com with your actual domain. The plugin settings screen displays this exact URL in a read-only field with a Copy button for convenience.

Register this URL in the PAYONE portal for both the pre-production and live environments. After registering, copy the Webhook Key ID and Webhook Secret shown in the portal — you will need both.

warning

PAYONE cannot deliver webhooks to a site running on localhost or a private network. If you are developing locally, use a tunnel service such as ngrok to expose a public URL for testing.

Purchase and Download

This plugin is a separate add-on available from the J2Commerce Extensions Store. It is not included with the core J2Commerce 6 component.

1. Go to the J2Commerce website and locate PAYONE Payment.
2. Add it to your cart and complete checkout.
3. Go to My Downloads under your account profile and find the plugin.
4. Click Available Versions -> View Files -> Download Now to download the ZIP file.

Install the Plugin

In the Joomla Administrator, go to System -> Install -> Extensions.

Upload the payment_payone.zip package ZIP file or use the Install from URL option.

Enable the Plugin

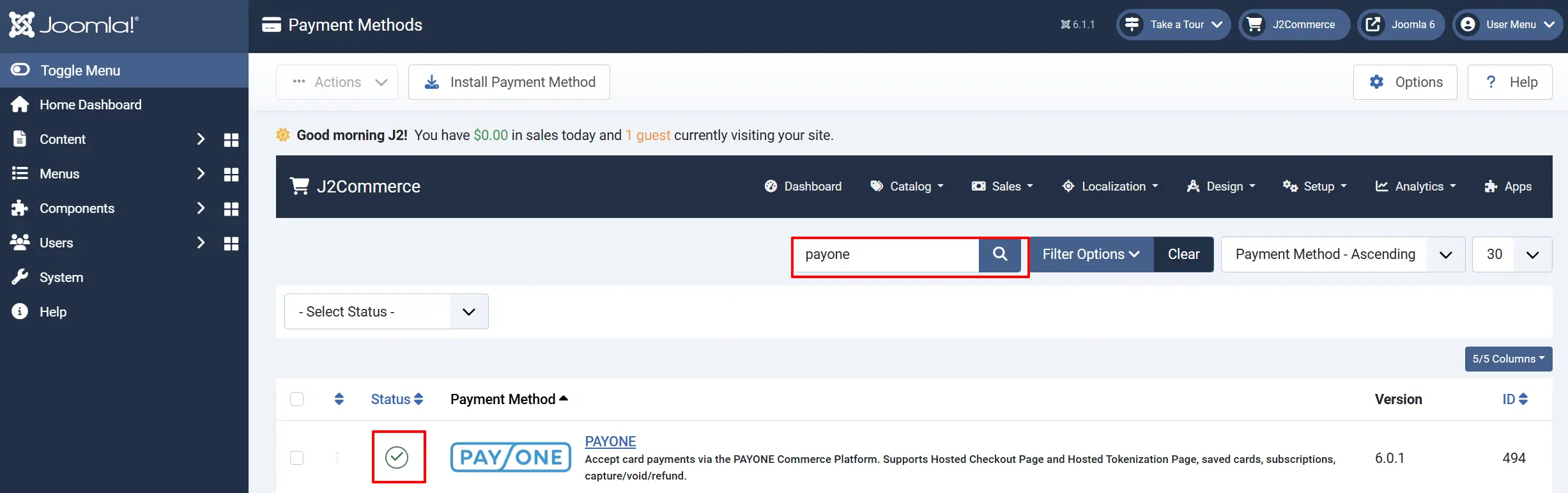

Once you have installed the App, you will need to enable it. There are two ways you can access the App.

Option A: Go to the J2Commerce icon at the top right corner -> Setup -> Payment Methods

Option B: Go to Components on the left sidebar -> J2Commerce -> Dashboard -> Setup -> Payment Methods

To help you narrow down the list, you can do a search for PAYONE, click the X, and it will turn into a green checkmark. It is now enabled and ready for setup.

Configure the Plugin

Click the PAYONE title next to the green checkmark to open the configuration screen.

tip

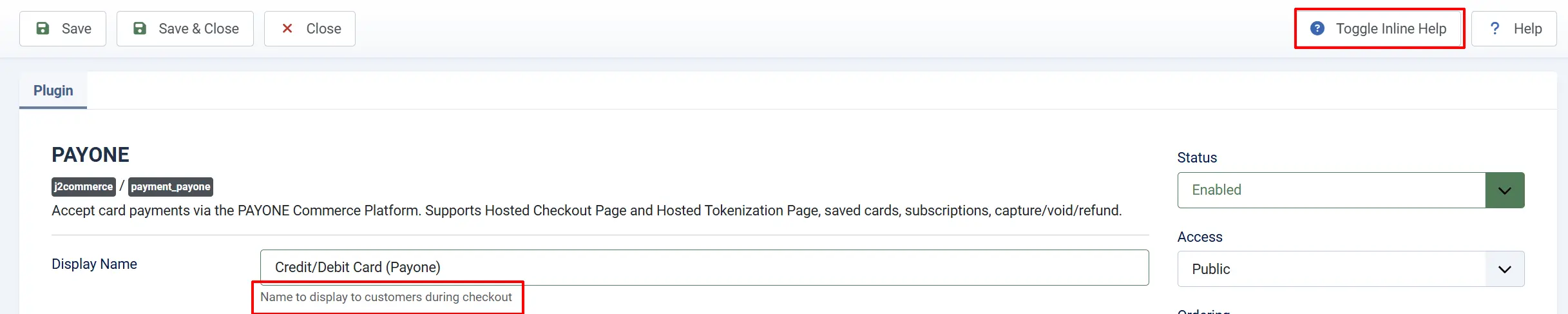

Click the Toggle Inline Help button at the top of any plugin configuration page to show a short description beneath each field.

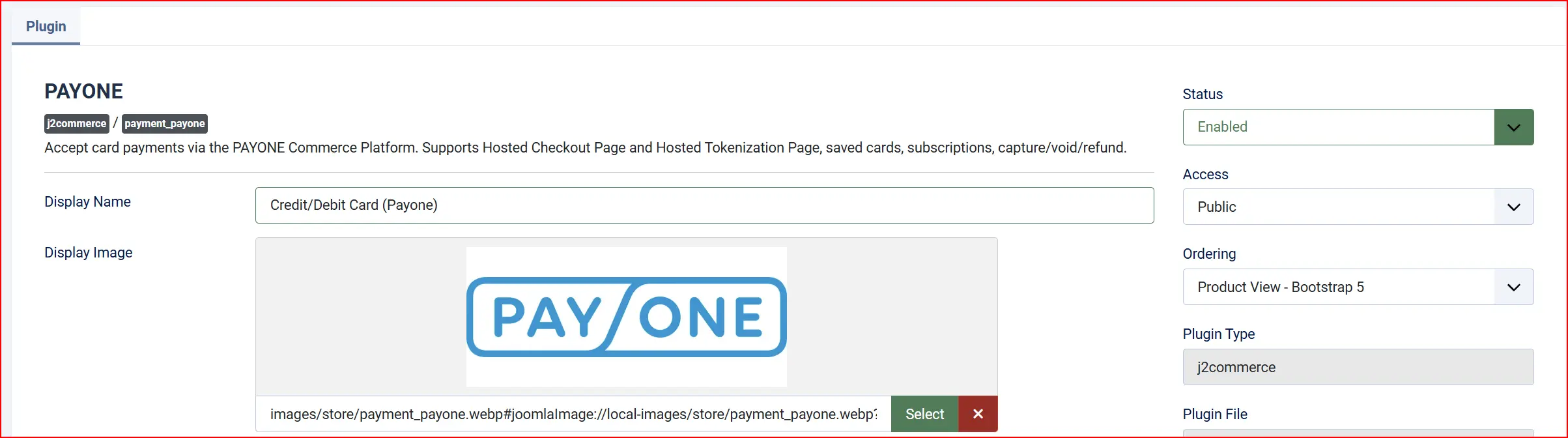

Basic Settings tab

Display Name: The label shown to customers on the checkout page (for example, "Pay by Card" or "Credit/Debit Card"). The default is Credit/Debit Card.

Display Image: An optional logo to show next to the payment method name at checkout. Leave blank to show no image.

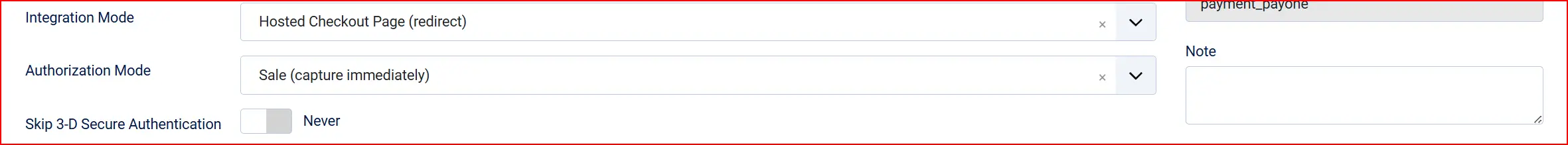

Integration Mode

Integration Mode: Controls how the payment form is presented to the customer.

• Hosted Checkout Page (redirect): The customer is redirected to a secure PAYONE-hosted payment page, then returned to your store after payment. Qualifies for SAQ-A PCI compliance. This is the default.

• Hosted Tokenization Page (iframe): A secure card-input form from PAYONE is embedded in an iframe on your checkout page. Card data is tokenized by PAYONE — your server never sees raw card numbers. Required for saved cards.

Authorization Mode

Authorization Mode: Controls when funds are collected from the customer's card.

• Sale (capture immediately): Funds are captured at the moment of authorization — the customer is charged right away. This is the default and suits most stores.

• Pre-authorization (capture later): The card is authorized and funds are reserved, but no charge is made until you click Capture from the order screen. Use this when you want to confirm stock or review an order before charging.

• Final authorization: A guaranteed pre-authorization that cannot be modified before capture. Typically used in specific retail scenarios.

When Authorization Mode is set to Pre-authorization or Final authorization, an additional Authorized Status field appears so you can set a distinct order status for payments that are authorized but not yet captured.

Sandbox / Test Mode

Sandbox / Test Mode: When switched on, all transactions go to the PAYONE pre-production environment (payment.preprod.payone.com). No real charges are made.

Enable this during setup and testing. A warning banner appears on the J2Commerce dashboard while test mode is active. Switch it off only when you are ready to accept real payments.

Skip 3-D Secure Authentication

Skip 3-D Secure Authentication: When switched on, J2Commerce requests a direct authorization and bypasses the 3-D Secure (3DS / SCA) bank verification step. Leave this OFF on production sites — 3DS is required for EU/EEA compliance under PSD2. Only enable this for test accounts that do not simulate the 3DS flow.

Credentials

The plugin shows either the live credentials or the sandbox credentials depending on whether Sandbox mode is on or off.

Live credentials (shown when Sandbox is OFF)

API Key ID: Your PAYONE live API Key ID

API Secret: Your PAYONE live API Secret (stored encrypted)

PSPID (Merchant ID): Your PAYONE live merchant identifier

Webhook Key ID: The Webhook Key ID from the PAYONE live portal

Webhook Secret: The Webhook Secret for live HMAC-SHA256 signature verification (stored encrypted)

Webhook URL: Read-only display of your store's webhook endpoint — copy this into the PAYONE portal

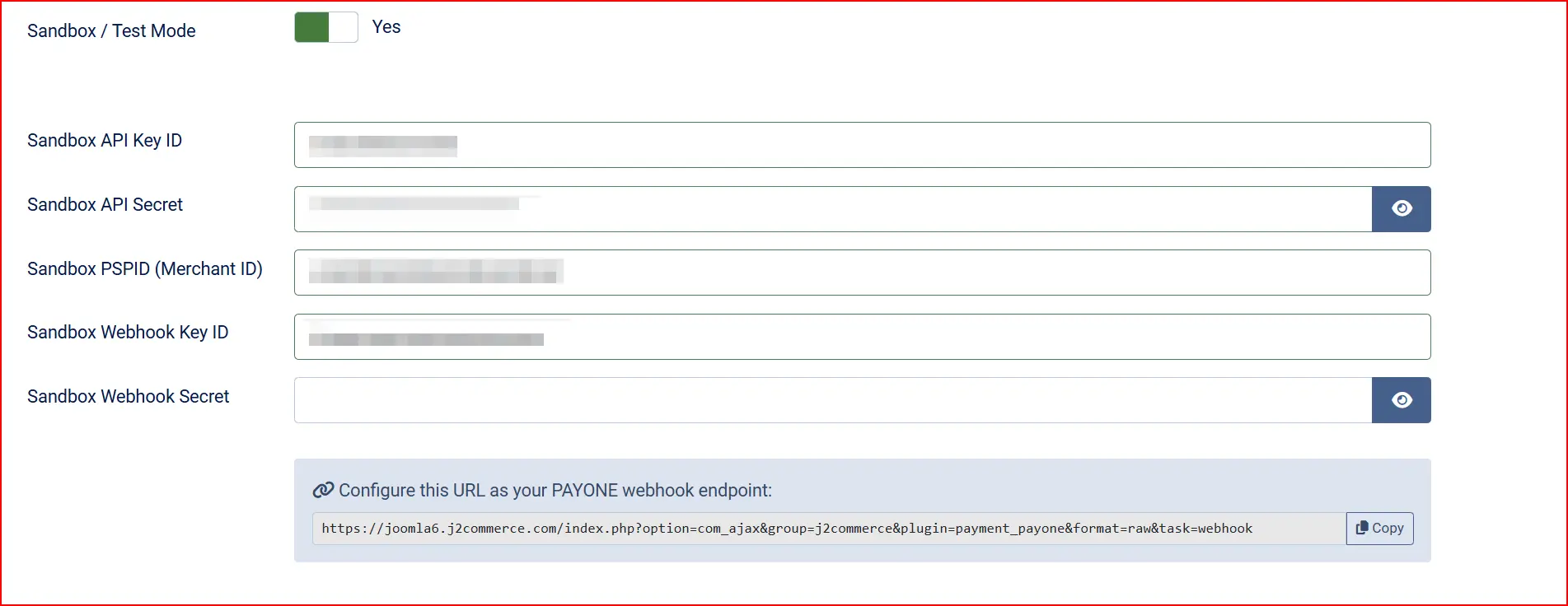

Sandbox credentials (shown when Sandbox is ON)

Sandbox API Key ID: Your PAYONE pre-production API Key ID

Sandbox API Secret: Your PAYONE pre-production API Secret

Sandbox PSPID (Merchant ID): Your PAYONE pre-production merchant identifier

Sandbox Webhook Key ID: The Webhook Key ID from the PAYONE pre-production portal

Sandbox Webhook Secret: The Webhook Secret for pre-production HMAC-SHA256 verification

Webhook URL: Read-only display of your store's webhook endpoint for use in the pre-production portal

Saved Cards

Allow Saved Cards: When switched on, logged-in customers can save their card token at checkout for faster purchases in the future. Saved cards can also be charged automatically for subscription renewals.

info

The Allow Saved Cards setting is only available when Integration Mode is set to Hosted Tokenization Page (iframe). Hosted Checkout Page redirect mode does not support card saving.

Template Style

Template: Choose the checkout layout style for the payment form. Available options depend on your site's active J2Commerce template skin (Bootstrap 5 or UIkit). Leave blank to use the default for your template.

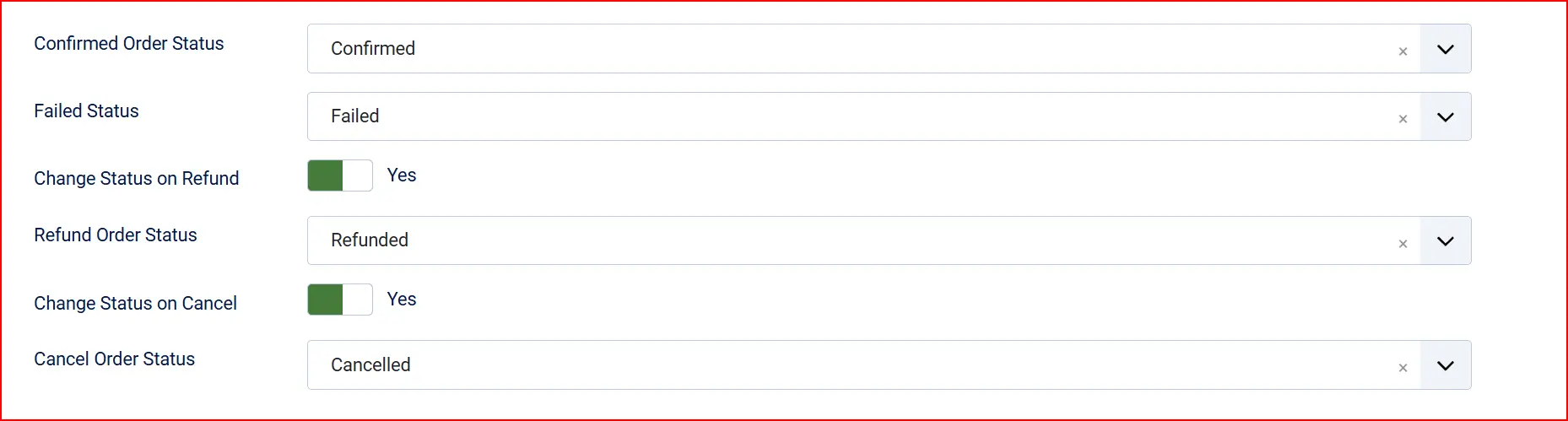

Order Statuses

These settings control which J2Commerce order status is applied when specific payment events occur.

Order Status (Payment Success): Status applied when PAYONE confirms a successful payment

Authorized Status: Status applied when payment is authorized but not yet captured — only shown for Pre-authorization and Final authorization modes

Failed Status: Status applied when a payment is declined or fails

Change Status on Refund: When switched on, automatically updates the order status after a refund is processed

• Refund Order Status: The status to apply after a refund — only shown when Change Status on Refund is enabled

Change Status on Cancel: When switched on, automatically updates the order status after a payment is voided or cancelled

• Cancel Order Status: The status to apply after a cancellation — only shown when Change Status on Cancel is enabled

info

NOTE: If the status you want isn't listed in the dropdown menu, you can create a new one by going to J2Commerce -> Setup -> Order Statuses

Surcharge

Add an optional handling fee when a customer chooses PAYONE.

Surcharge Name: The label shown to the customer (for example, "Card processing fee")

Surcharge Percent: A percentage of the order total added as a fee (for example, 1.5 for 1.5%)

Surcharge Fixed: A fixed amount added regardless of order size

Surcharge Tax Class: A tax profile to apply to the surcharge — leave blank if no tax applies

Leave Surcharge Percent and Surcharge Fixed blank to charge no surcharge.

GeoZone and Restrictions

Geozone Restriction: Limit PAYONE to customers in a specific geozone — leave blank to allow all locations

Minimum Order Subtotal: Hide PAYONE as a payment option when the cart subtotal is below this amount (-1 means no minimum)

Maximum Order Subtotal: Hide PAYONE when the cart subtotal is above this amount (-1 means no maximum)

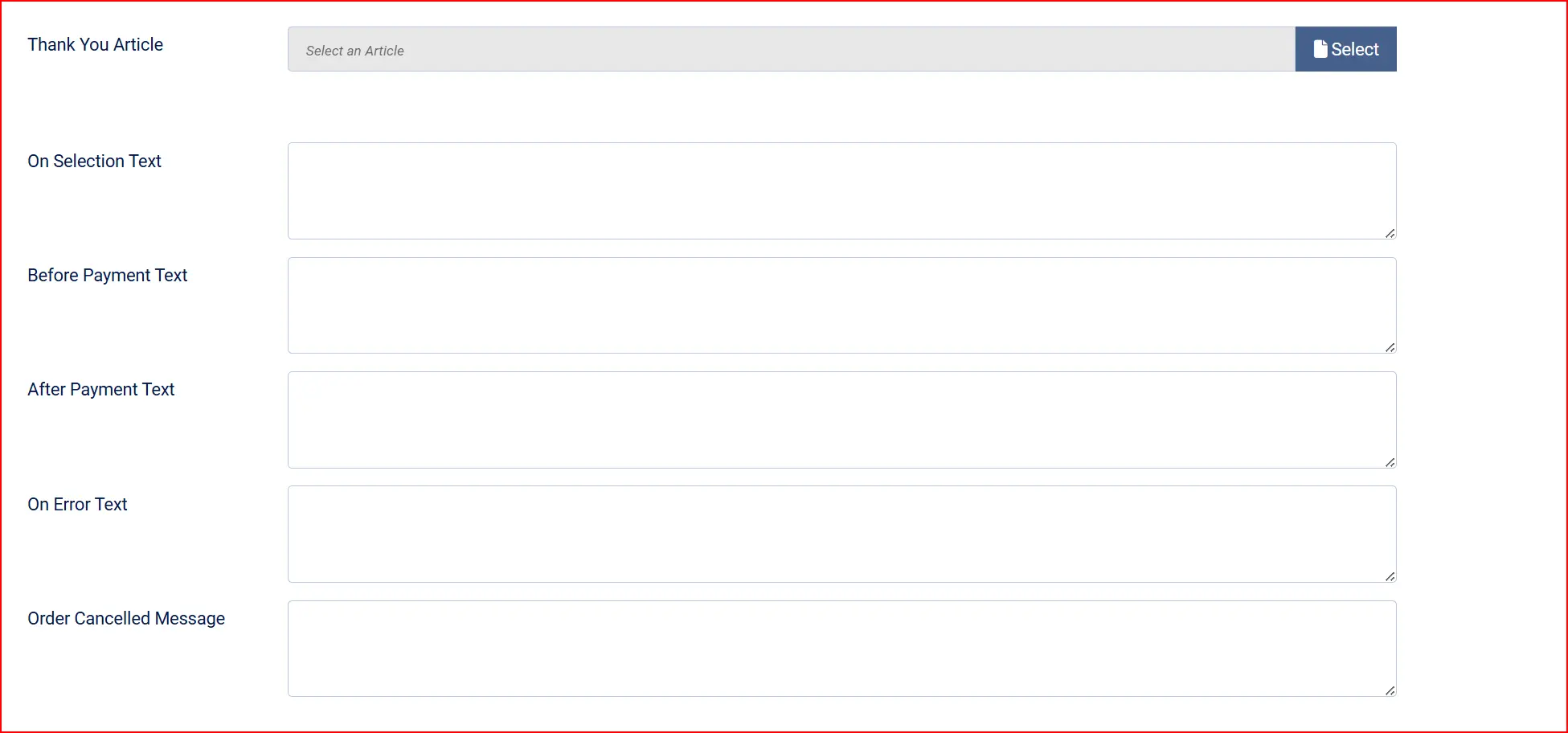

Custom HTML Messages

These optional fields let you display custom text at different points in the payment flow.

Thank-You Article: Optional Joomla article shown on the order confirmation page after successful payment

On Selection Text: Displayed when the customer selects PAYONE as their payment method

Before Payment Text: Displayed just above the payment form, before the customer enters card details

After Payment Text: Displayed on the confirmation page after a successful payment

On Error Text: Displayed when a payment attempt fails

Order Cancelled Message: Displayed when the customer cancels or navigates away from the PAYONE payment page

Dashboard Icon

Show Dashboard Icon: Add a quick-access shortcut for this plugin to the J2Commerce dashboard.

Icon Label: The label for the shortcut. Defaults to "PAYONE" if left blank.

Debug Mode

Debug Mode: Records detailed API request and response data to the Joomla log file at administrator/logs/payment_payone.php.

Only enable this when diagnosing a specific problem. Disable it on live sites — debug logs can contain sensitive transaction details.

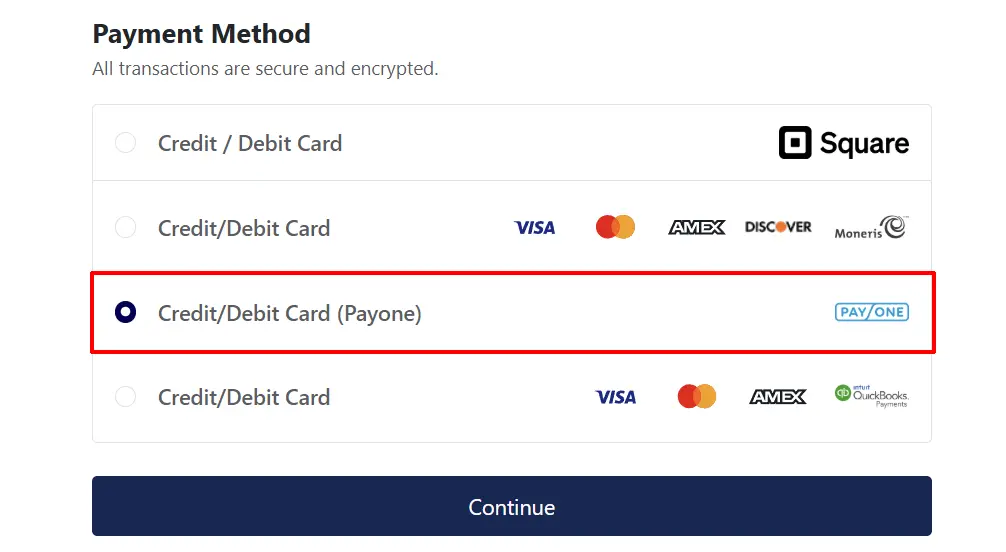

How Checkout Works for Customers

Hosted Checkout Page (redirect)

The customer adds items to their cart and proceeds to checkout.

On the payment step, a notice informs the customer that they will be redirected to a secure payment page.

The customer is sent to the PAYONE-hosted payment page to enter their card details.

After payment is complete (or if the customer cancels), they are returned to your store automatically.

On success, the customer sees the order confirmation page.

Hosted Tokenization Page (iframe)

1. The customer adds items to their cart and proceeds to checkout.
2. On the payment step, a secure card-input form appears embedded in the page — card number, expiry date, and CVV fields are loaded in a PAYONE iframe.
3. If the customer is logged in and has saved cards on file (and Allow Saved Cards is enabled), a list of their saved cards appears. They can select a saved card or choose to use a new card.
4. If using a new card and saved cards are enabled, a checkbox lets the customer save the card for future orders.
5. On success, the customer sees the order confirmation page.

Webhooks

PAYONE sends real-time notifications to your store when payment events occur — such as a payment being authorized, captured, declined, cancelled, or refunded. The plugin verifies each notification using HMAC-SHA256 by checking the X-GCS-Signature header against the Webhook Secret you configured.

The webhook URL to register in the PAYONE portal is:

https://your-site.com/index.php?option=com_ajax&group=j2commerce&plugin=payment_payone&format=raw&task=webhook

Replace your-site.com with your actual domain. This URL is also displayed in the plugin settings for easy copying.

Key webhook events the plugin handles:

PAYONE Status Code	Meaning	What happens in J2Commerce
5 (Authorised)	Payment authorized, not yet captured	Order status updates to Authorized Status (pre-authorization mode) or Payment Success status (sale mode)
9 (Captured)	Funds captured	Order status updates to Payment Success status
6 (Cancelled/Voided)	Authorization voided	Order status updates to Cancel Order Status (if enabled)
8 (Refunded)	Refund processed	Order status updates to Refund Order Status (if enabled)
Other	Declined or error	Order status updates to Failed Status

Managing Payments from the Order Screen

After an order is paid, you can take follow-up actions from the J2Commerce order detail page.

Go to J2Commerce -> Sales -> Orders -> click the order number to open it. The PAYONE action buttons appear in the payment section of the order.

Capture a Payment (Pre-authorization mode only)

When Authorization Mode is set to Pre-authorization or Final authorization, payments are authorized but not charged until you capture them.

1. Open the order in J2Commerce -> Sales -> Orders.
2. Click Capture and confirm the prompt ("Capture this payment now? Funds will be debited from the customer.").
3. PAYONE collects the reserved funds from the customer's card. The order status updates to the Payment Success status.

info

The Capture button is only available when the payment statusCode is 5 (Authorised). Once captured, use Refund instead.

Void / Cancel a Payment

A void releases an authorized payment before it has been captured. Once captured, use Refund instead.

1. Open the order.
2. Click Void/Cancel and confirm the prompt ("Cancel/void this authorization? Note: funds may not release immediately.").
3. The authorization is released — the customer is not charged and any hold on their card is removed.

info

Funds may take a short time to be released depending on the customer's card issuer, even after a successful void.

Issue a Refund

You can refund a captured payment in full or in part.

1. Open the order.
2. Click Refund.
3. Choose Full refund to return the entire captured amount, or enter a smaller amount for a partial refund (up to the maximum refundable amount shown).
4. Click Process Refund to confirm.

The refund is submitted to PAYONE. If Change Status on Refund is enabled, the order status updates automatically when PAYONE confirms the refund.

Testing Payments

Always test in sandbox mode before accepting real orders.

1. Switch on Sandbox / Test Mode in the plugin settings and enter your PAYONE pre-production credentials (Sandbox API Key ID, Sandbox API Secret, Sandbox PSPID, Sandbox Webhook Key ID, and Sandbox Webhook Secret).
2. Register your webhook URL in the PAYONE pre-production portal.
3. Place a test order on your storefront.
4. At the payment step, complete the payment using a PAYONE test card number (available in your PAYONE merchant portal documentation).
5. Confirm the order appears in J2Commerce -> Sales -> Orders with the correct status.
6. If you are using pre-authorization mode, test capturing the payment from the order screen.
7. Test a refund from the order screen to confirm it processes without errors.
8. Check the Joomla log at System -> Logs for any errors — enable Debug Mode temporarily if needed.
9. When everything is working, switch off Sandbox / Test Mode and replace the sandbox credentials with your live credentials.

warning

Remember to turn off Sandbox / Test Mode before accepting real orders. A warning banner on the J2Commerce dashboard will remind you if sandbox mode is still active.

Troubleshooting

The payment form does not load at checkout

Cause: The plugin is not enabled, or credentials are missing.

Solution:

1. Go to J2Commerce -> Setup -> Payment Methods and confirm PAYONE shows a green enabled indicator.
2. Open the plugin settings and verify that API Key ID, API Secret, and PSPID are filled in for the active environment (live or sandbox).
3. Clear the Joomla cache: System -> Clear Cache -> Delete All.
4. Enable Debug Mode and attempt a checkout, then check the log at administrator/logs/payment_payone.php for error details.

Orders are stuck in a pending status after payment

Cause: PAYONE webhooks are not being received, or the webhook signature verification is failing because the Webhook Secret is incorrect.

Solution:

1. Confirm your webhook URL is registered in the PAYONE portal for the correct environment (pre-production or live).
2. Open the plugin settings and verify the Webhook Key ID and Webhook Secret match the values in the portal exactly. Even a trailing space will cause verification to fail.
3. Make sure your store's URL is publicly reachable over HTTPS. Webhooks cannot be delivered to localhost or a private network.
4. Enable Debug Mode and attempt a test payment, then review the log at administrator/logs/payment_payone.php for any webhook-related errors.

The Capture / Void / Refund buttons do not appear on the order

Cause: The order was not paid through PAYONE, the payment was never finalized, or no transaction ID was stored.

Solution:

1. Confirm the order's payment method is PAYONE (visible in the payment section of the order detail view).
2. The buttons appear only when a PAYONE payment ID is recorded on the order. If the checkout was interrupted before payment was confirmed, no transaction data is stored.
3. Enable Debug Mode and re-test a full checkout to confirm transaction data is being saved correctly.

Capture fails with "Payment cannot be captured in its current state"

Cause: The payment is not in Authorised status (statusCode 5). It may have already been captured or has expired.

Solution:

1. Check the order's payment details. If the payment was already captured (statusCode 9), use Refund instead.
2. Pre-authorizations expire after a period set by PAYONE (typically a few days). If the authorization has expired, a new order will need to be placed.
3. Enable Debug Mode and retry the capture, then review the log for the specific error returned by PAYONE.

Refund fails with "Payment cannot be refunded in its current state"

Cause: The payment must be in Captured status (statusCode 9) before it can be refunded. A payment that was only authorized and then voided cannot be refunded.

Solution:

1. Check that the original payment was captured (the Capture button must have been clicked, or Authorization Mode was set to Sale).
2. Enable Debug Mode and retry the refund, then review the log for the specific error.

Missing credentials warning on the J2Commerce dashboard

Cause: One or more of API Key ID, API Secret, or PSPID is empty for the active environment.

Solution:

1. Go to J2Commerce -> Setup -> Payment Methods -> PAYONE.
2. Fill in the API Key ID, API Secret, and PSPID fields for the environment that is currently active (live or sandbox).
3. Click Save to apply the changes.

Saved cards do not appear at checkout

Cause: Saved cards are only available in Hosted Tokenization Page mode. In Hosted Checkout Page mode, the feature is not supported.

Solution:

1. Open the plugin settings and change Integration Mode to Hosted Tokenization Page (iframe).
2. Make sure Allow Saved Cards is switched on.
3. Confirm the customer is logged in — saved cards are not shown to guest shoppers.
4. Click Save and clear the Joomla cache.
