Weights

The Weights feature allows you to configure measurement units for product weights. Weight units are essential for shipping carriers that calculate rates based on package weight, and for displaying product specifications to customers. J2Commerce supports automatic conversion between units, ensuring accurate shipping calculations regardless of the unit used for data entry.

Requirements

• PHP 8.3.0+
• Joomla 6.x
• J2Commerce 6.x

Locating Weights

Weights are managed from the J2Commerce Dashboard.

There are two ways you can access the Weights.

Option A: Go to the J2Commerce icon at the top right corner -> Localization -> Weights

Option B: Go to Components on the left sidebar -> J2Commerce -> Dashboard -> Localization -> Weights

Weight List

The Weights list displays all weight units configured in your store. Each unit shows:

Weight Title: The display name of the unit. Example: Kilogram

Unit: The short symbol for the unit (1-4 characters). Example: kg

Conversion Value: The multiplier to convert to the base unit. Base unit has value 1.00000000. Example: 0.45359237 for pound

• Base Unit: Value = 1.00000000 (e.g., if kilogram is your base unit)
• Gram: Value = 0.001 (1 g = 0.001 kg)
• Pound (lb): Value = 0.45359237 (1 lb = 0.45359237 kg)
• Ounce (oz): Value = 0.02834952 (1 oz = 0.02834952 kg)
• Milligram: Value = 0.000001 (1 mg = 0.000001 kg)

To calculate the conversion value:

conversion_value = number_of_base_units_in_this_unit

Decimal Places: Number of decimal places to display for this unit. Example: 2

Unit	Decimal Places	Example Display
Milligram	0	500 mg
Gram	2	150.25 g
Kilogram	3	1.525 kg
Pound	2	2.50 lb
Ounce	1	8.5 oz

Status: Set to Published to make the unit available.

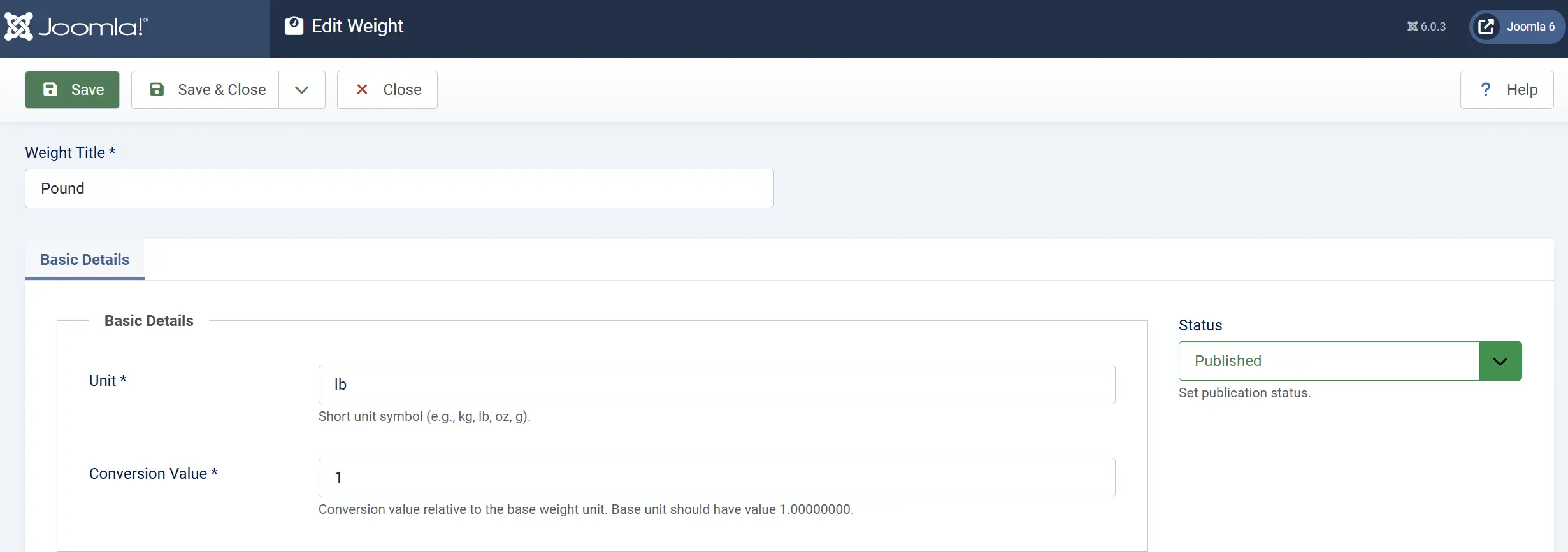

Adding a New Weight Unit

1. Click the New button in the toolbar.
2. Fill in the unit details (see Configuration below).
3. Click Save or Save & Close.

Base Unit

Your base unit is the unit with a conversion value of 1.00000000. This is the unit in which:

• Product weights are stored in the database
• Shipping calculations are performed
• Internal calculations happen

All other units are defined relative to this base unit.

Choosing a Base Unit

Select your base unit based on your primary market and shipping carriers:

International: Kilogram (kg)

United States: Pound (lb)

Jewellery/Small items: Gram (g)

Common Weight Units

Weight Title	Unit	Conversion Value (base: kg)	Decimal Places
Milligram	mg	0.000001	0
Gram	g	0.001	2
Kilogram	kg	1.00000000	3
Metric Tonne	t	1000	2
Ounce	oz	0.02834952	1
Pound	lb	0.45359237	2
Stone	st	6.35029	2
US Ton	ton	907.185	2

How Weight Units Are Used

Weight units are referenced throughout J2Commerce:

Product Weight

1. Products have a weight attribute for shipping calculations.
2. Weight is entered in the product's selected unit.
3. The system converts to the base unit for storage and calculation.

Shipping Rate Calculation

1. Shipping carriers often use weight to calculate rates.
2. J2Commerce converts product weights to the carrier's required unit.
3. Total order weight = sum of (product weight × quantity) for all items.

Dimensional Weight

Some carriers use dimensional weight instead of actual weight:

1. Dimensional weight = (Length × Width × Height) / carrier divisor.
2. The carrier charges for whichever is greater: actual weight or dimensional weight.
3. This is why both weight and length units must be configured correctly.

Setting the Product weight

Open the product -> J2Commerce tab -> Shipping tab

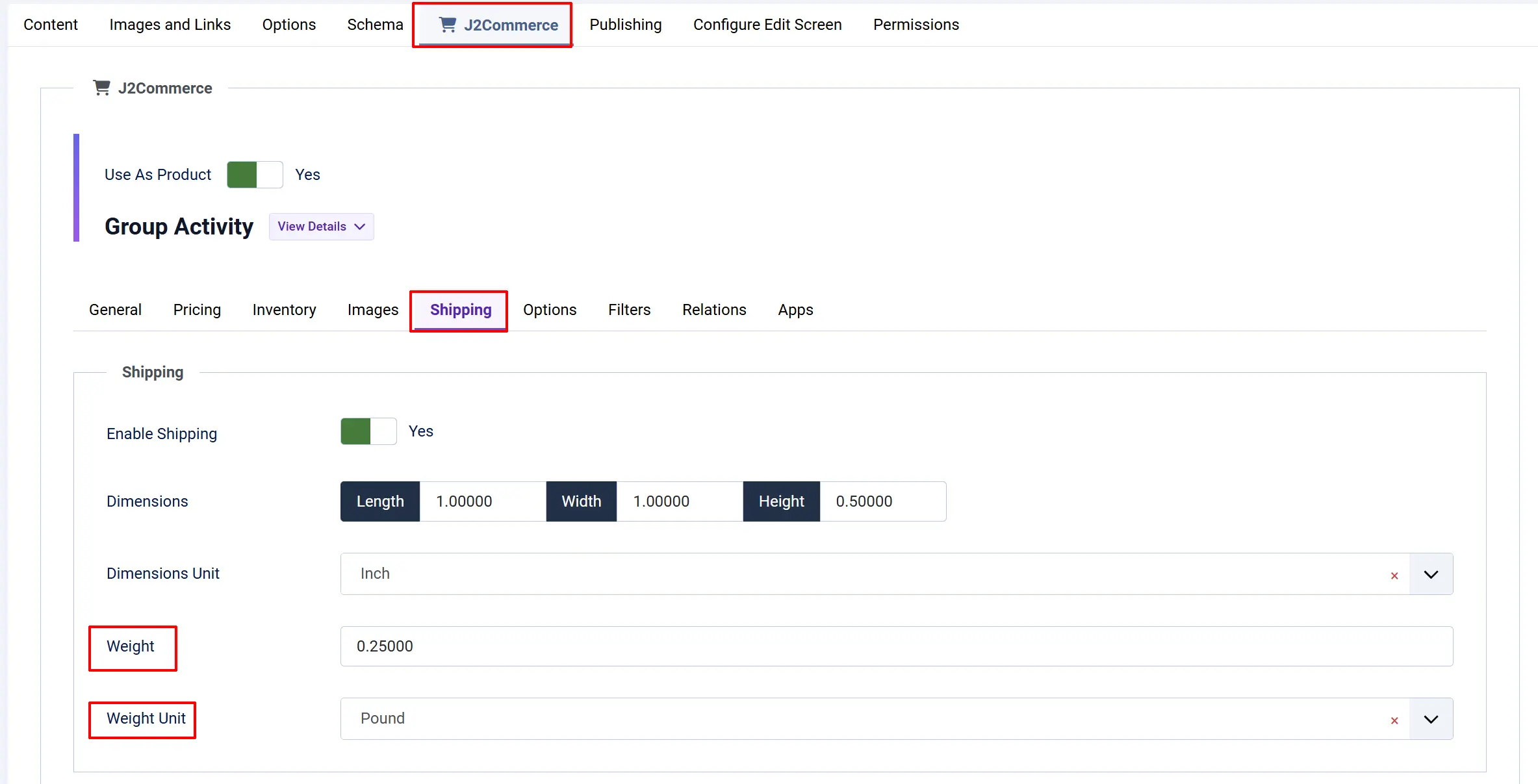

The image below shows how the weight is configured on a product. Go to the product

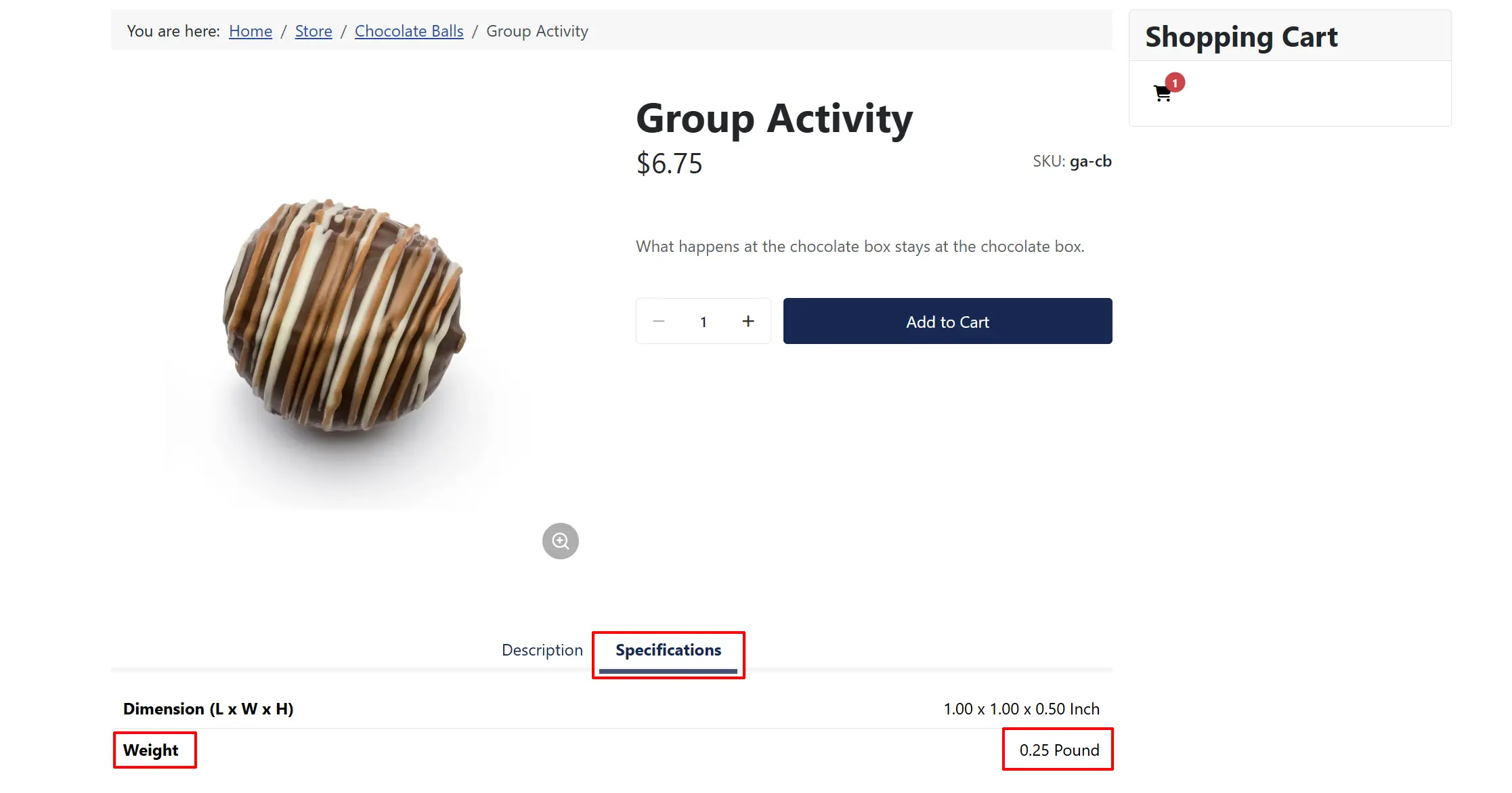

Frontend Product Display

• Customers see weight in their preferred unit.

• The store can display weight in any published unit.

Weight Calculation Examples

Example 1: Order Weight Calculation

A customer orders:

• Product A: 0.5 kg × 2 units = 1.0 kg
• Product B: 0.25 kg × 3 units = 0.75 kg
• Product C: 1.2 kg × 1 unit = 1.2 kg

Total weight = 2.95 kg

Shipping carrier requires weight in pounds:

• 2.95 kg ÷ 0.45359237 = 6.50 lb

Example 2: Product Weight Entry

A store uses kilograms as the base unit. A product weighs 500 grams:

1. Staff enters weight in grams: 500
2. Staff selects unit: Gram
3. System converts: 500 g × 0.001 = 0.5 kg (stored)
4. Customer viewing in pounds sees: 0.5 kg ÷ 0.45359237 = 1.10 lb

Tips

• Set one base unit — Only one unit should have a value of 1.00000000.
• Use standard abbreviations — Use ISO or common abbreviations for units (kg, lb, g, oz).
• Match your carriers — Choose units familiar to your primary shipping carriers.
• Verify conversions — Double-check conversion values against known conversions.
• Consider precision — Set appropriate decimal places for each unit (mg=0, g=2, kg=3).
• Use accurate weights — Incorrect weights lead to shipping charge adjustments.

Troubleshooting

Shipping Rates Too Low/High

Cause: Incorrect product weight or wrong conversion values.

Solution:

1. Verify product weights are entered correctly.
2. Check the weight unit selected for each product.
3. Review weight unit conversion values.
4. Compare the calculated weight against the carrier's weight requirement.

Weight Showing Wrong Values

Cause: Incorrect conversion value for the unit.

Solution:

1. Go to J2Commerce -> Localisation -> Weights.
2. Find the problematic unit and edit it.
3. Verify the Conversion Value is correct.
4. Compare against known conversions (e.g., 1 lb = 0.45359237 kg).

Product Weight Not Saving

Cause: Weight unit not published or invalid value.

Solution:

1. Verify that at least one weight unit is published.
2. Check that the unit's conversion value is greater than 0.
3. Clear the Joomla cache after changing units.

Unit Not Appearing in Dropdown

Cause: The unit is unpublished.

Solution:

1. Go to J2Commerce -> Localisation -> Weights.
2. Find the unit and check that Status shows Published (green check).
3. If unpublished, click the status icon to publish it.

Weight Conversion Errors

Cause: Rounding errors in conversion values.

Solution:

1. Use 8 decimal places for conversion values for maximum precision.
2. Example: Use 0.45359237 for pounds (not 0.454).
3. This ensures accurate calculations for small weights.
