Square Integration

The Square Integration app connects your Square POS account to J2Commerce and pulls your entire product catalog across in one step. Products, variations, inventory counts, pricing, categories, images, modifiers, and tax settings all flow from Square into J2Commerce automatically. Once the sync is running, you can sell on your Joomla site without maintaining a separate product list — Square stays the single source of truth for your inventory.

Requirements

• PHP 8.3 or later
• Joomla! 6.x
• J2Commerce 6.3.4 or later
• A Square account (free or paid)
• An HTTPS-enabled Joomla site (required for OAuth and webhooks)

Purchase and Download

This app is a separate add-on available from the J2Commerce Extensions Store. It is not included with the core J2Commerce 6 component.

Step 1: Go to the J2Commerce website -> Apps

Step 2: Locate the Square Integration app -> click View Details -> Add to Cart -> Checkout

Step 3: Go to My Downloads under your profile button at the top right corner. Search for the app, then click Available Versions -> View Files -> Download Now

Install the App

In the Joomla Administrator, go to System -> Install -> Extensions.

Upload the plugin ZIP file or use the Install from URL option.

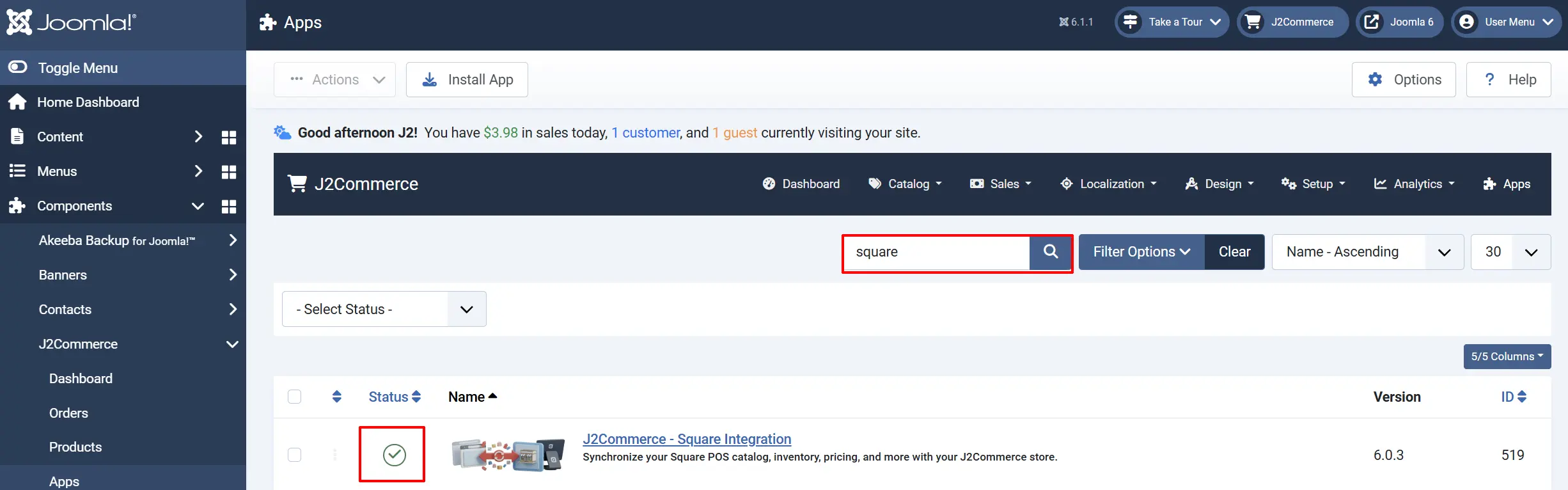

Enable the App

Once installed, enable the app before configuring it. There are two ways to reach it.

Option A: Click the J2Commerce icon at the top right of the administrator toolbar -> Apps

Option B: Go to Components on the left sidebar -> J2Commerce -> Apps

Find Square Integration in the list and click the status icon to turn it from a red X to a green checkmark. The app is now enabled and ready to configure.

First-Time Setup

Work through these steps in order the first time you set up the integration.

Step 1: Create a Square Developer Application

1. Go to developer.squareup.com/apps and sign in with your Square account.
2. Click Create your first application (or the + button if you already have apps).
3. Give it a name — for example, "My J2Commerce Store" — and click Save.
4. Open the app. In the left sidebar, click OAuth.
5. Copy the Application ID and the Application Secret. You will paste these into J2Commerce in the next step.

Configuring the App

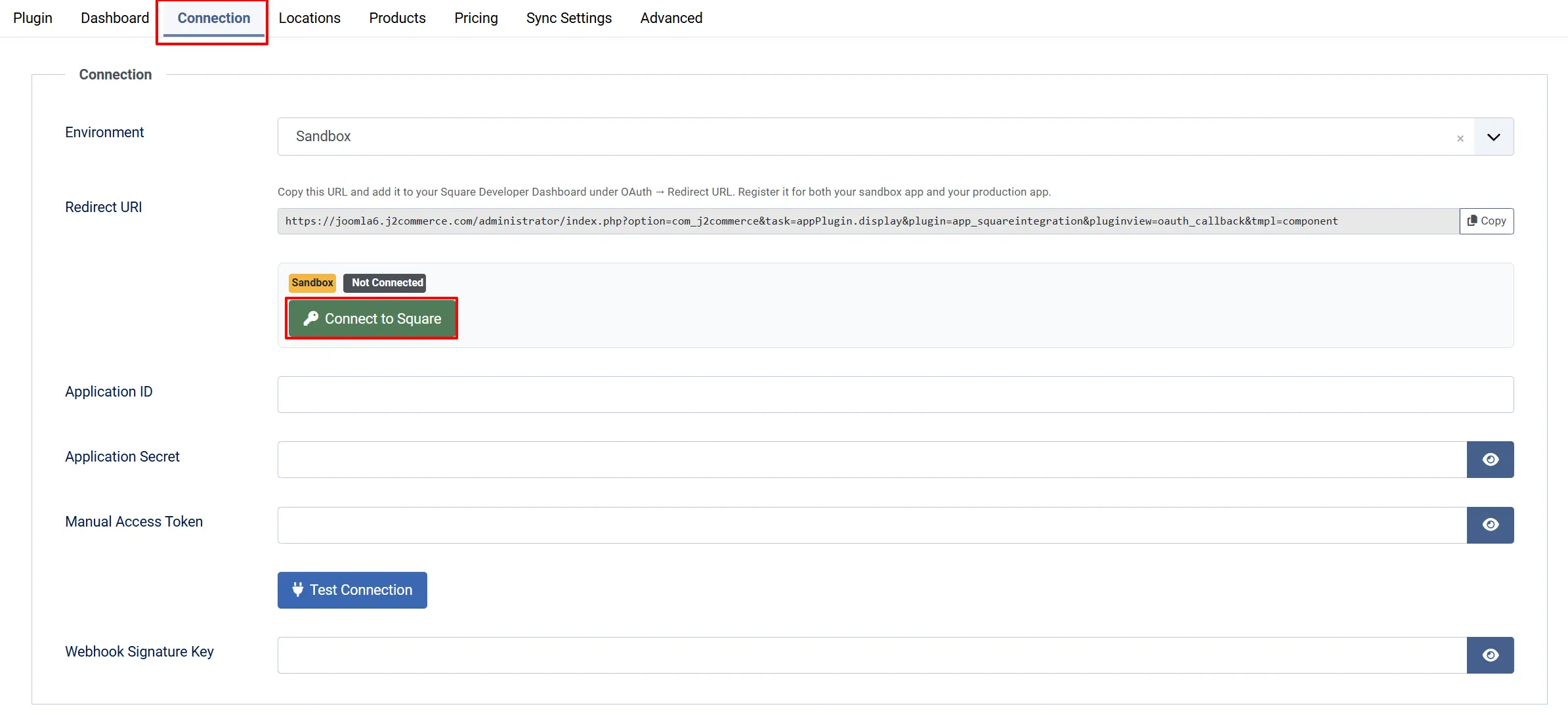

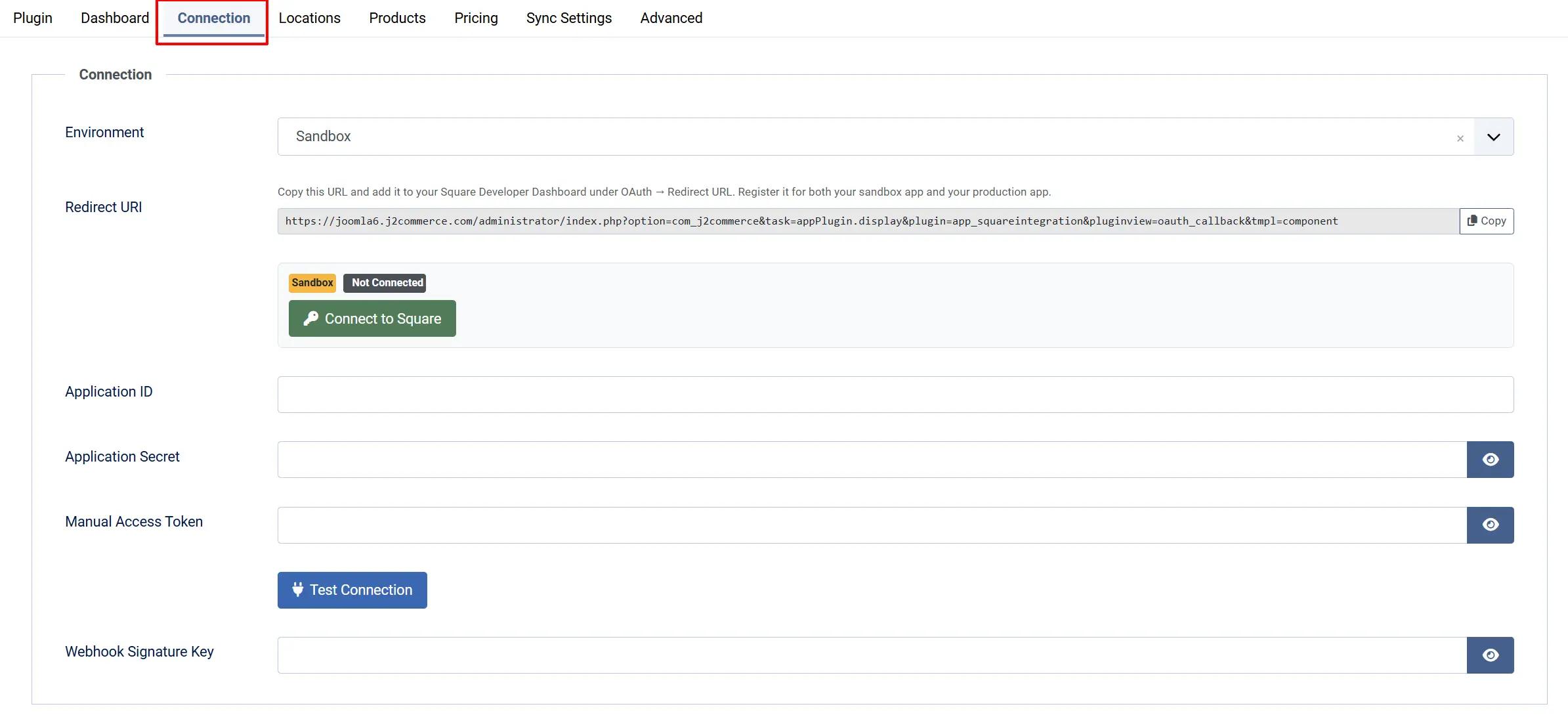

Step 2: Enter Credentials in J2Commerce

The Connection tab handles authentication with Square. Complete this tab before any other tab will function.

1. Go to J2Commerce -> Apps -> click Square Integration to open its settings.
2. Click the Connection tab.
3. Set Environment to Sandbox while testing or Production when live.
4. Paste your Application ID and Application Secret from Square.
5. Copy the Redirect URI shown in J2Commerce — you need this in the next step.
6. Click Save.

Environment: Sandbox for testing, Production for live sales

Redirect URI: Read-only. Copy this exact URI into the Square Developer Dashboard -> OAuth -> Redirect URL field

Square Connection: Displays the current OAuth status. Click Connect to Square to authorize access via OAuth, or Disconnect to remove the stored tokens

Application ID: Your app's Application ID from the Square Developer Dashboard -> OAuth section. Required for production OAuth

Application Secret: Your app's OAuth client secret from the Square Developer Dashboard -> OAuth section. Not the same as the main Credentials page

Manual Access Token: Sandbox/development fallback only. Paste a Square sandbox access token here to bypass the OAuth popup flow

Test Connection: Verifies the saved credentials are valid by contacting the Square API and returning a pass or fail message

Webhook Signature Key: Paste the signature key Square generated when you created the webhook subscription. Used to verify incoming webhook payloads

Step 3: Register the Redirect URI in Square

1. Return to the Square Developer Dashboard -> your app -> OAuth.
2. In the Redirect URL field, paste the exact Redirect URI you copied from J2Commerce.
3. Click Save.

The URI must match character-for-character, including https://, all query string parameters such as tmpl=component, and any trailing slash. Even a single character difference causes Square to reject the OAuth request.

Step 4: (Sandbox Only) Open a Test Seller Session

If you are working in sandbox mode, Square requires an active test seller session in your browser before the OAuth consent page renders. If you skip this step, the popup shows a blank page.

1. In the Square Developer Dashboard, open your sandbox app.
2. In the left sidebar, click Sandbox Test Accounts.
3. Click Open next to a test seller. A new tab logs that test seller into Square sandbox.
4. Keep that tab open and return to J2Commerce.

Production OAuth does not require this step — it only applies to sandbox.

Step 5: Connect to Square

1. In J2Commerce -> Square Integration -> Connection tab, click Connect to Square.
2. A popup opens with the Square consent screen. Click Allow.
3. The popup closes automatically and the status badge turns green, showing Connected.

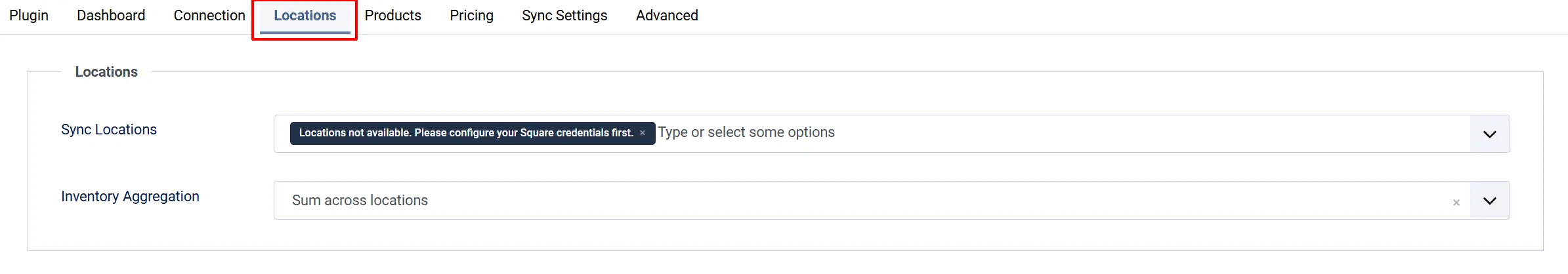

Step 6: Select Locations

Square businesses can have multiple physical or online locations. The Locations tab controls which ones feed inventory counts into J2Commerce.

The list of your Square locations loads automatically. If it does not appear, click Save on the Connection tab first.

Sync Locations: Multi-select list of your Square locations. Only selected locations contribute inventory to the sync

Inventory Aggregation: Sum across locations adds up stock across all selected locations. Primary location only uses only the first selected location

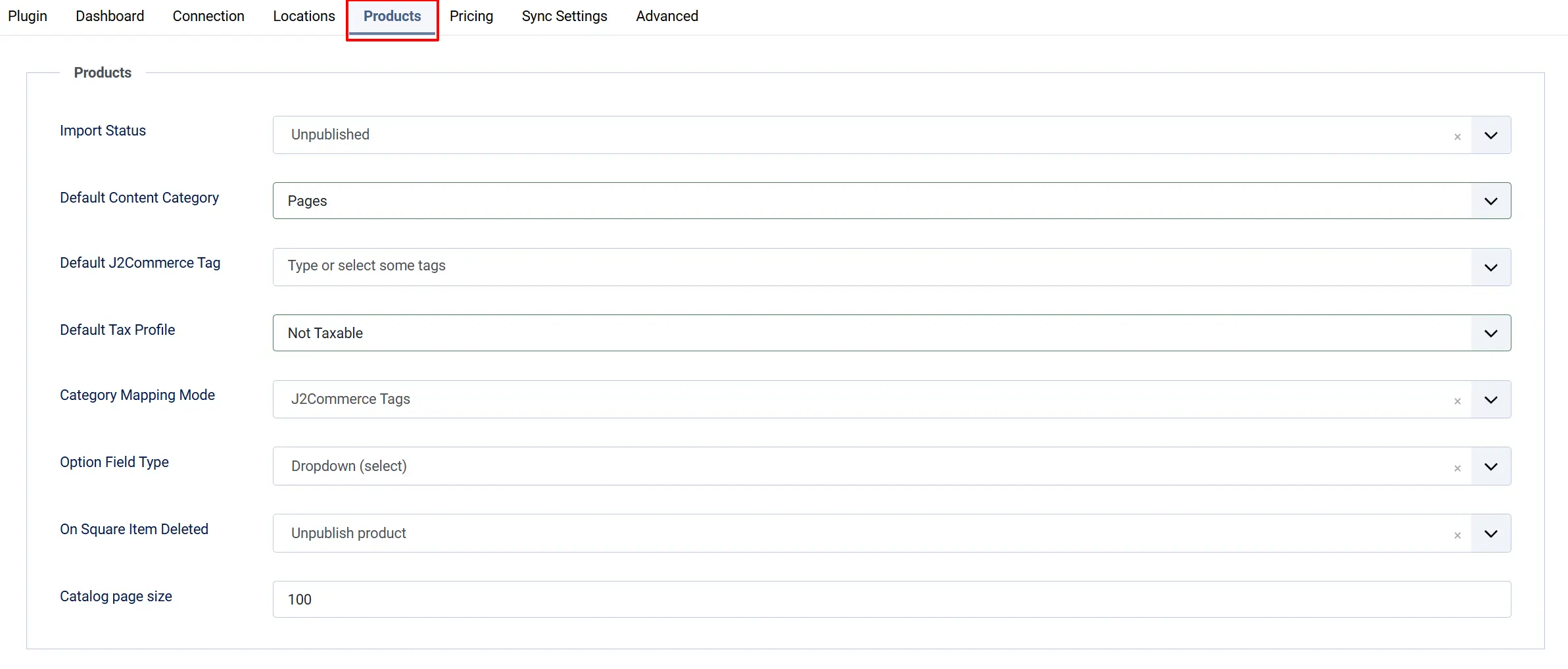

Step 7: Configure Product Defaults

These defaults apply to every item imported from Square. You can override individual settings per product in J2Commerce after import.

Import Status: The published state new imports start in. Set to Unpublished while testing so customers do not see partially configured products

Default Content Category: The Joomla content category where imported products are filed

Default J2Commerce Tag: Tags applied automatically to every imported product

Default Tax Profile: The J2Commerce tax profile applied when Square does not have a matching tax configured for an item

Category Mapping Mode: J2Commerce Tags maps each Square category to a J2Commerce tag. Joomla Content Categories maps each Square category to a Joomla content category

Option Field Type: How the product options created from Square modifiers are presented to shoppers. Dropdown, Radio Buttons, or Color Swatches

On Square Item Deleted: Action to take in J2Commerce when an item is deleted from Square. Unpublish product, Trash product, or Do nothing

Catalog page size: How many products to fetch per page in the Catalog dashboard tab. Range 25–200. The Square API caps each request at 200

Step 8: Set Up Webhooks

Webhooks let Square push instant updates to J2Commerce when catalog or inventory changes. You need the Queue Key from J2Commerce Options first. See the Webhook Setup section below for step-by-step instructions.

Step 9: Set Up the Cron Job

Create a cron job so J2Commerce regularly checks Square for changes. See Automated Sync with a Cron Job below.

Step 10: Run Your First Import

1. Open the Dashboard tab in the Square Integration settings, or find the Square Integration quick icon on the J2Commerce admin home.
2. Click Import All from Square to pull your full catalog into J2Commerce.

Once the import finishes, review the imported products in J2Commerce -> Catalog -> Products and publish any that look correct.

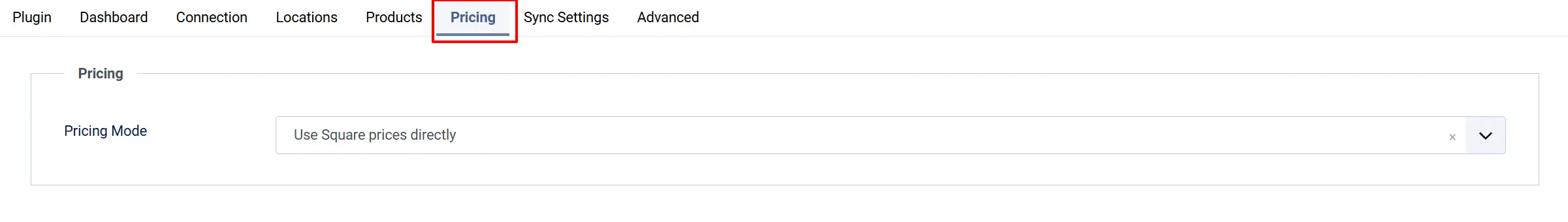

Pricing Tab

By default J2Commerce uses your Square prices as-is. The Pricing tab lets you add a markup for your online store.

Pricing Mode: Use Square prices directly — no adjustment. Apply markup to Square prices — add a percentage or fixed amount on top

Markup Type: Visible only when Markup mode is selected. Percentage or Fixed Amount

Markup Value: The markup percentage or fixed dollar amount to add. Enter a whole number or decimal

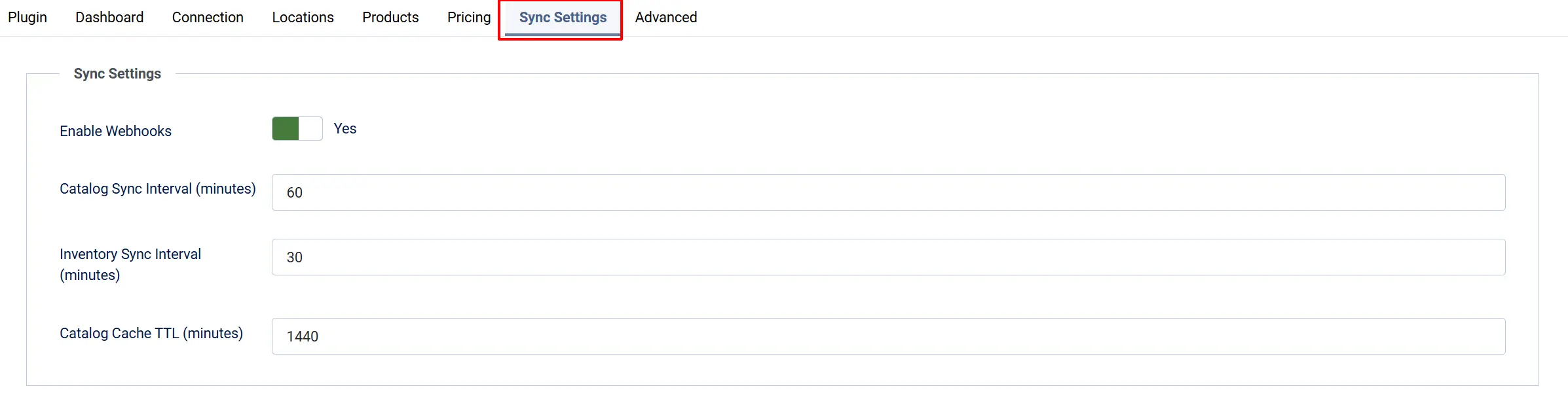

Sync Tab

The Sync Settings tab controls whether Square can push instant changes via webhooks and holds the interval values for scheduled syncs.

Enable Webhooks: When Yes, Square sends real-time notifications when products or inventory change. Requires an HTTPS site reachable from the public internet

Catalog Sync Interval (minutes): How often the cron job should check for catalog changes. Minimum 15 minutes. This value is saved with the settings but does not start a sync by itself: the schedule is set on the cron job you create under Automated Sync with a Cron Job

Inventory Sync Interval (minutes): How often the cron job should sync inventory counts. Minimum 5 minutes. As with the catalog interval, the schedule itself is set on the cron job

Catalog Cache TTL (minutes): How long to cache Square catalog data before re-fetching. Minimum 60 minutes

POS Orders Tab

This tab sends every confirmed web order, whatever the payment method, to Square as an itemized, already-paid order with a pickup or shipment, so staff see it in Square Point of Sale and the Order Manager. It is off by default. Orders confirmed before you switch it on are not sent.

Setting	What It Does	Default	Options
Push Orders to Square POS	Queues each order that reaches a trigger status and sends it to Square. Queued jobs appear in the Queue Center with the type square_pos_order	No	Yes, No
POS Location	The Square location that receives web orders. Its currency must match the store currency, otherwise the order is not sent	First Selected Location	Your Square locations
Send Orders When Status Becomes	An order is sent once, the first time it reaches one of these statuses. Leave it empty to use Confirmed. Offline methods such as bank transfer are sent when staff confirm the payment	Empty (Confirmed)	Any order status
Fulfillment Type	How the order appears in the Square Order Manager. Delivery is not offered because Square hides delivery orders created by other apps	Automatic	Automatic (Shipment for Shippable Orders, Otherwise Pickup), Pickup, Shipment
Order Source Name	Shown as the order source in Square. Leave it blank to use the site name	Blank	Text, up to 255 characters
Pickup Prep Time (Minutes)	Estimated preparation time Square shows for pickup orders	20	1 to 1440
Update Order Status from Square	Changes the J2Commerce order status when staff mark the order ready or completed in Square. Needs the order.updated event on the Square webhook subscription. An order that has since moved to another status in J2Commerce is left alone	No	Yes, No
Status When Marked Ready	Order status to set when staff mark the fulfillment as prepared in Square. Shown only when Update Order Status from Square is Yes	Do Not Change	Any order status
Status When Marked Completed	Order status to set when staff mark the fulfillment as completed in Square. Shown only when Update Order Status from Square is Yes	Do Not Change	Any order status

All settings except Push Orders to Square POS appear only after you set it to Yes.

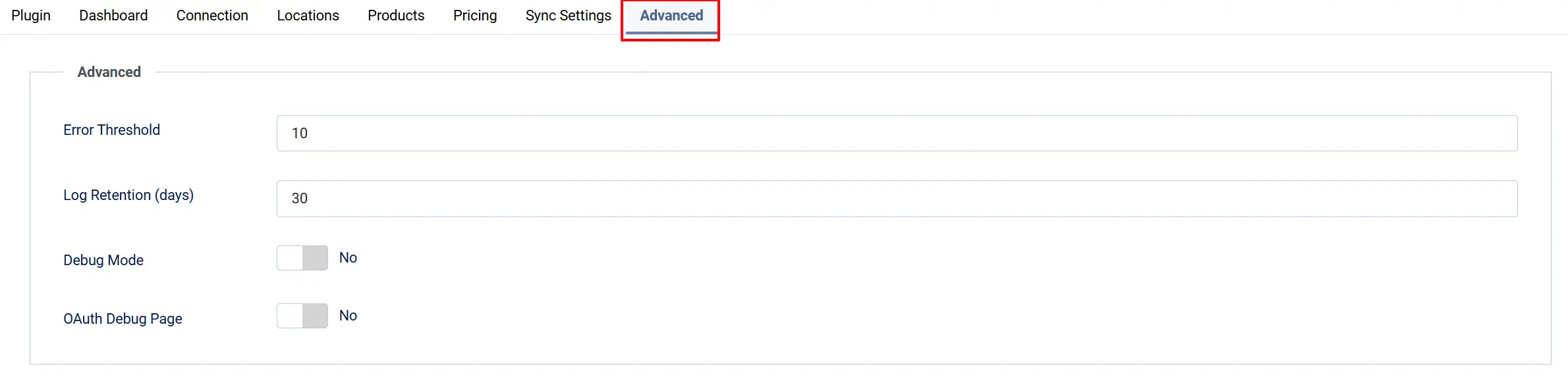

Advanced Tab

The Advanced tab provides debugging controls that you should not need to touch during normal operation.

Error Threshold: Number of consecutive sync errors before J2Commerce auto-pauses API calls. Once paused, go to the Dashboard tab and click Resume Sync

Log Retention (days): How many days of sync activity logs to keep before automatic cleanup. Minimum 7 days

Debug Mode: When Yes, verbose logging is written to administrator/logs/plg_j2commerce_app_squareintegration.php. Disable on live sites

OAuth Debug Page: When Yes, clicking Connect to Square shows a debug card instead of immediately redirecting. The card shows the authorize URL, Application ID, OAuth state, and Redirect URI. Turn back to No to restore the normal flow

Dashboard Tabs

Opening the Square Integration settings puts you directly on the Dashboard tab, which contains six inner tabs for monitoring and managing the sync.

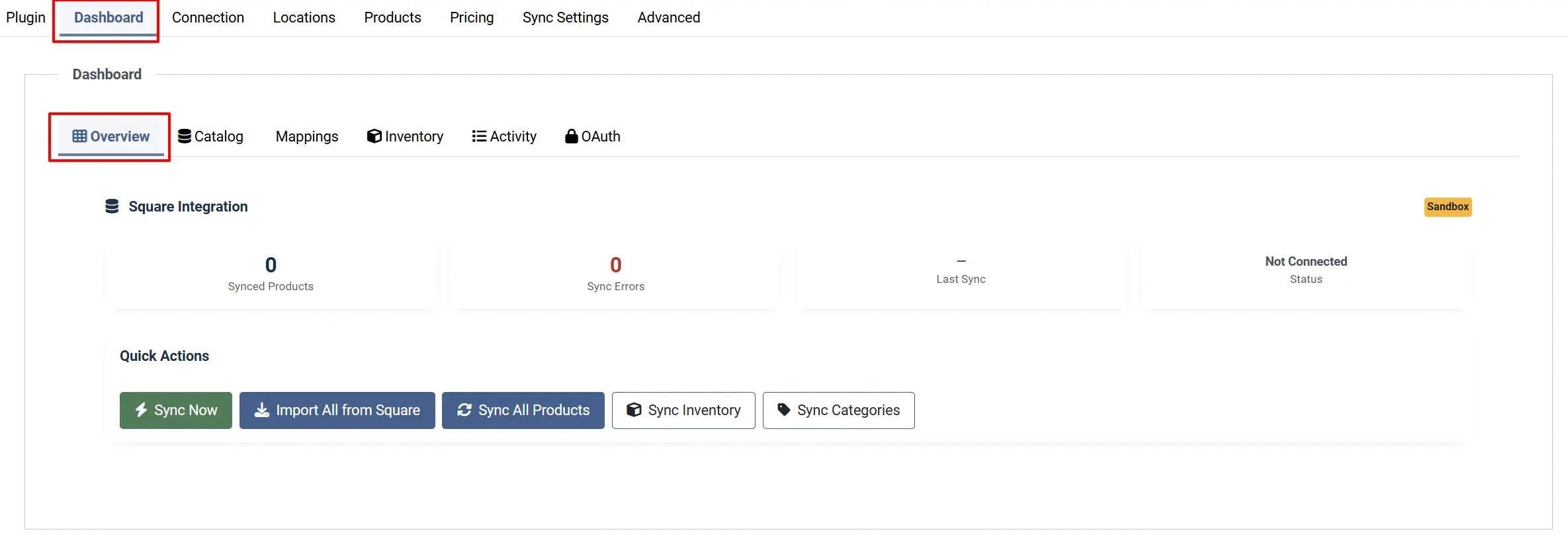

Overview Tab

The Overview tab is the control center for the integration. It shows:

• Connection status — whether J2Commerce is currently connected to Square
• Environment — sandbox or production
• Sync statistics — number of synced products, synced categories, synced modifiers, synced discounts, synced tax profiles
• Last sync time — when the most recent sync completed
• Queue status — number of items pending in the background queue

The Quick Actions panel on this tab lets you run one-click operations without navigating to other tabs:

• Sync Now — chains category sync, product import, and inventory refresh in one step
• Import All from Square — imports your full Square catalog, skipping items already mapped
• Sync All Products — re-syncs all currently mapped products from Square
• Sync Inventory — refreshes inventory counts only, without touching product data
• Sync Categories — mirrors Square's category hierarchy into J2Commerce as tags
• Import Categories Into Joomla — creates Joomla content categories from Square categories
• Sync Discounts — pulls discount objects from Square into J2Commerce
• Sync Modifiers — pulls modifier lists from Square and creates J2Commerce product options from them
• Sync Taxes — pulls Square tax configurations and maps them to J2Commerce tax profiles
• Sync Square Vendors — creates or updates J2Commerce vendor records from Square supplier data
• Resume Sync — clears the auto-paused state after errors exceed the error threshold
• Clear Log — deletes all activity log entries

If API calls are auto-paused due to repeated errors, a warning banner appears at the top of this tab with the error count and a Resume Sync button.

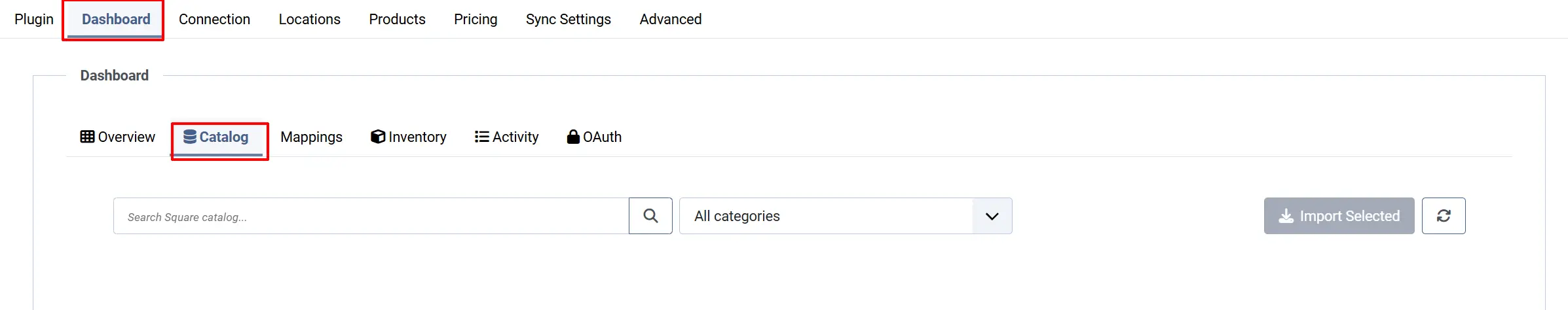

Catalog Tab

The Catalog tab is a browser for your raw Square catalog. Use it to preview items before importing, import selected items individually, or search and filter your catalog.

The table shows each Square item with its name, category, number of variations, and whether it has already been imported into J2Commerce. Items already synced display an Already synced badge.

Actions available on this tab:

• Search — filter the list by name using the search box
• Filter by Square category — narrow the list to items in a specific Square category
• Import Selected — tick one or more items and click this button to import them
• Import All — imports every item from Square that has not already been mapped
• Load More / Next — page through large catalogs. The Square API returns items in batches; use pagination controls to see more results

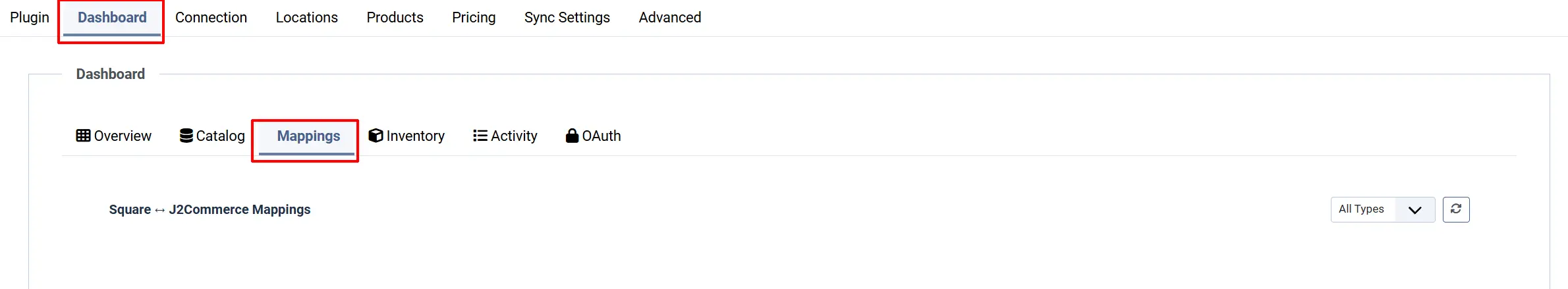

Mappings Tab

The Mappings tab shows the link records between every Square object and its corresponding J2Commerce entity. Each mapping row contains the Square object ID, entity type (product, variant, tag, coupon, tax profile, etc.), the matched J2Commerce entity, sync status, and last synced timestamp.

You can filter by entity type and sync status. Actions available per row:

• Re-sync — fetches the latest data for that Square object and updates the J2Commerce entity
• Unlink — removes the mapping record without deleting the J2Commerce entity. Use this if you want to re-import a product with fresh defaults or detach a product from Square tracking

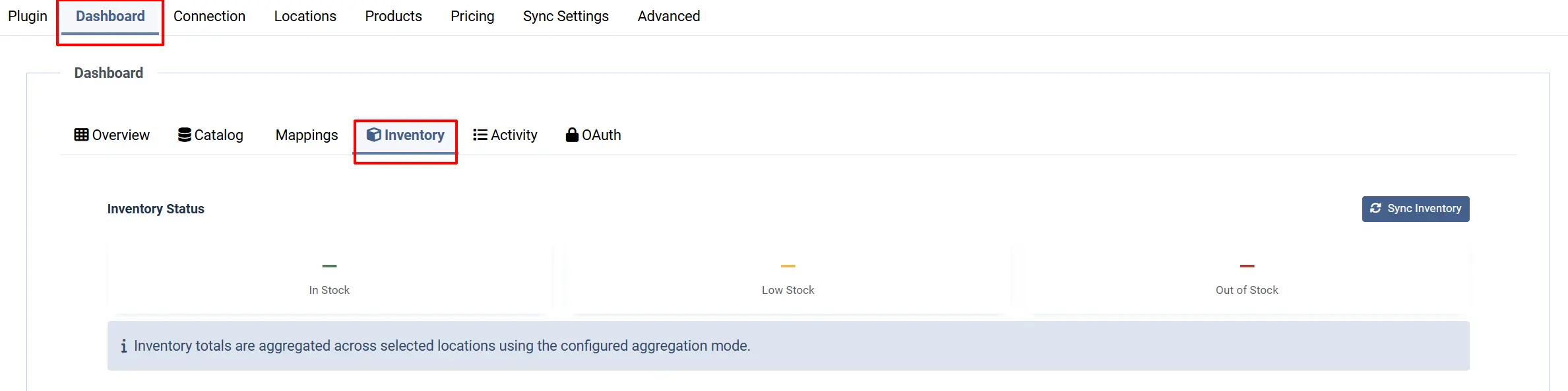

Inventory Tab

The Inventory tab shows the current stock status for every mapped product variation. It displays each product, its location, and quantity in one of three states: In Stock, Low Stock, or Out of Stock.

A note at the top of this tab reminds you which inventory aggregation mode is active (Sum or Primary).

Click Sync Inventory on this tab (or from the Quick Actions panel) to pull the latest counts from Square immediately.

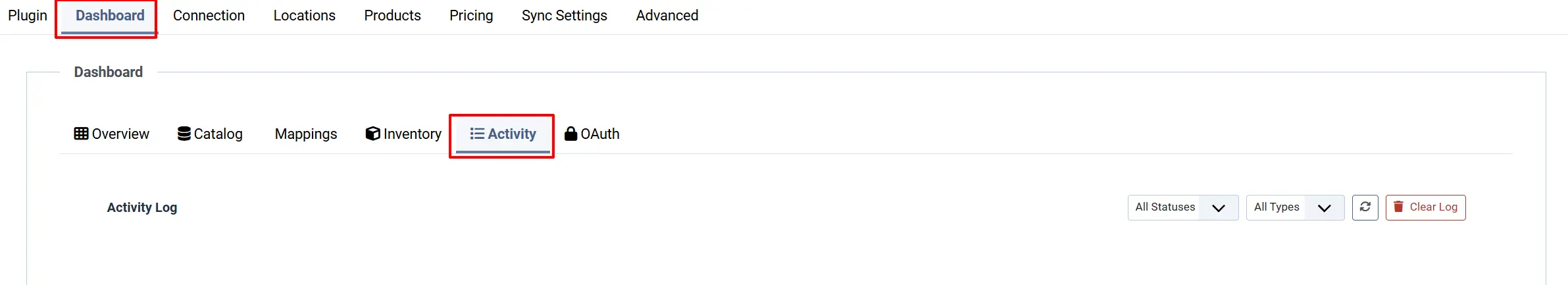

Activity Log Tab

The Activity Log tab records every sync event — imports, updates, webhook deliveries, errors, and OAuth actions. Each entry shows an action type, entity type, entity identifier, status, and timestamp.

You can filter the log by status (Success, Warning, Error) or by entity type to focus on specific issues. Click Clear Log to delete all entries and start fresh. The log is automatically trimmed to the number of days set in the Log Retention (days) field on the Advanced tab.

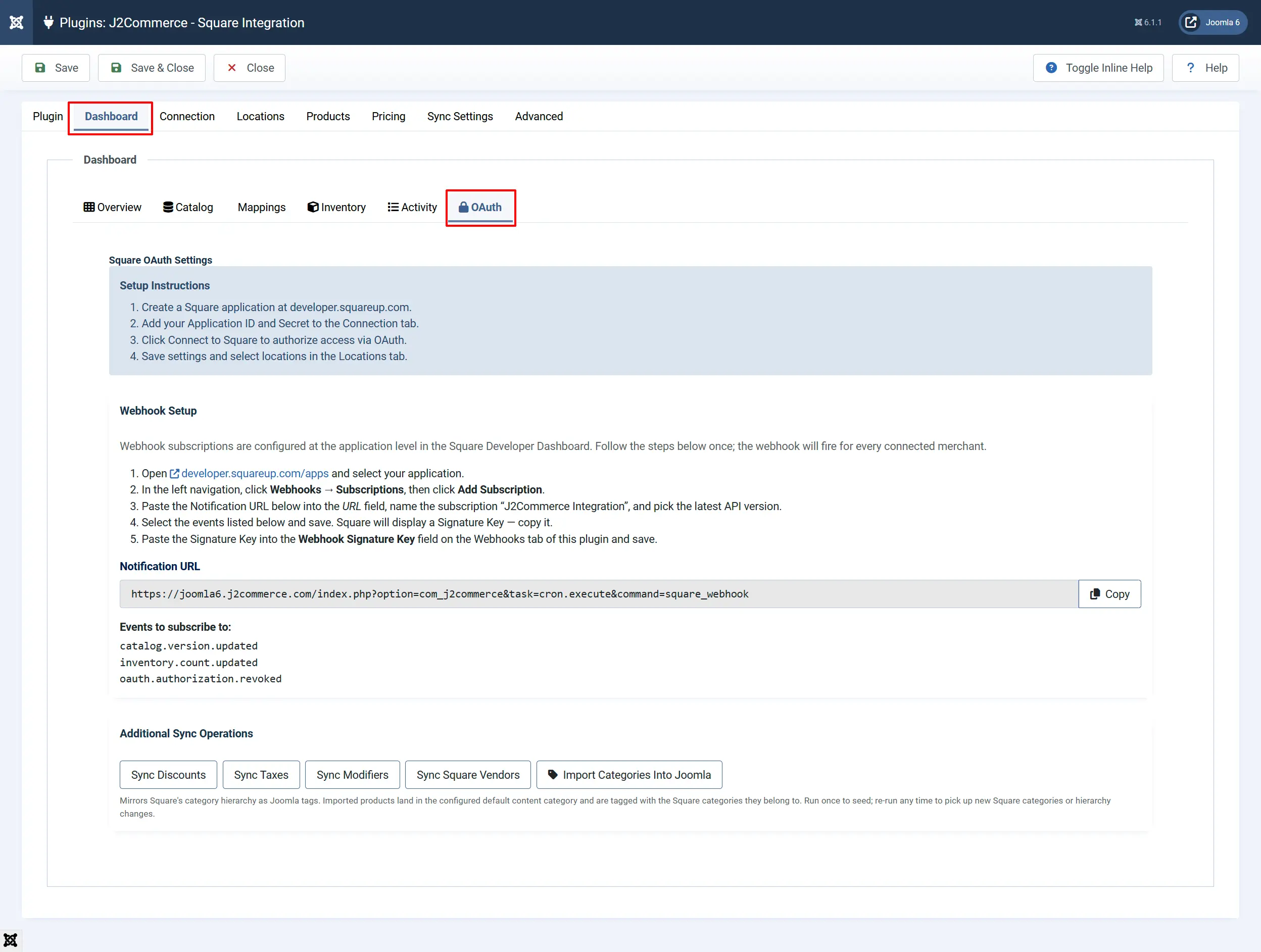

OAuth Tab

The OAuth tab displays the current authorization status and provides a step-by-step setup guide for the webhook subscription, including the Notification URL to copy.

Information shown:

• Connection status (Connected / Not Connected)
• Merchant name
• Token expiry date
• Active environment (sandbox or production)
• Granted OAuth scopes
• Webhook subscription ID (once registered)

This tab also contains the webhook setup instructions — see the Webhook Setup section below for the full walkthrough.

Webhook Setup

Webhooks let Square notify J2Commerce the moment something changes — instead of waiting for the next cron run. The subscription is created once at the application level in the Square Developer Dashboard and applies to every connected merchant. J2Commerce does not create it for you, and neither Test Connection nor reconnecting registers it.

Before You Start: The Queue Key

The Notification URL contains the Queue Key from J2Commerce -> Options. If no key is set yet, the OAuth tab asks you to generate one and does not show a complete URL. Generate and save the key first, then return to the OAuth tab. If you regenerate the key later, update the URL in the Square subscription too.

Events That J2Commerce Handles

Square Event	What Triggers It	J2Commerce Action
catalog.version.updated	A catalog item is created, updated, or deleted in Square	Queues a product sync for the changed item
inventory.count.updated	Stock levels change at a location	Queues an inventory update
oauth.authorization.revoked	A merchant revokes access in Square	Logs a warning; tokens must be refreshed manually
order.updated	Staff mark a web order ready or completed in Square	Updates the J2Commerce order status. Only needed when Update Order Status from Square is set to Yes

Step-by-Step: Register the Webhook Subscription

1. Go to developer.squareup.com/apps and select your application.

2. In the left navigation, click Webhooks -> Subscriptions, then click Add Subscription.

3. Copy the Notification URL shown on the OAuth tab inside J2Commerce's Square Integration settings. It includes your Queue Key.

4. Paste it into the URL field in the Square Developer Dashboard. Give the subscription a name such as "J2Commerce Integration" and choose the latest API version.

5. Enable the following events (add order.updated only if you use Update Order Status from Square):

   • catalog.version.updated
   • inventory.count.updated
   • oauth.authorization.revoked

6. Click Save. Square generates a Signature Key — copy it.

7. Return to J2Commerce -> Square Integration -> Connection tab.

8. Paste the Signature Key into the Webhook Signature Key field and click Save.

Automated Sync with a Cron Job

A cron job keeps J2Commerce in sync with Square even without webhook events. J2Commerce runs Square commands when a request reaches its cron URL with your Queue Key. The Square Integration app does not add a task type to the Joomla Scheduled Tasks list.

Task Commands

Command	What It Does
square_sync_all	Syncs the full catalog — fetches item data from Square and updates all mapped J2Commerce products
square_sync_inventory	Refreshes inventory counts for all mapped product variations
square_refresh_token	Proactively renews the OAuth access token before it expires
square_webhook	Processes incoming webhook payloads. Called internally when Square posts an event

Setting Up the Cron Job

1. Go to J2Commerce -> Options and copy the Queue Key (generate and save one if it is empty).
2. In your hosting control panel, create a cron job that requests this URL, replacing the domain and key with your own: https://example.com/index.php?option=com_j2commerce&task=cron.execute&command=square_sync_all&cron_secret=YOUR_QUEUE_KEY
3. Set the schedule on the cron job. Once per hour is a reasonable start: 0 * * * *
4. Create a second cron job for inventory with the same URL and command=square_sync_inventory, for example every 30 minutes: */30 * * * *

A request with a missing or wrong Queue Key is refused. The Last Cron Run field in J2Commerce Options shows when the cron job last ran.

How Sync Works

When a sync runs — either triggered by a cron job or pushed by a Square webhook — J2Commerce processes your catalog in this order:

1. Authentication check — Verifies the stored OAuth token is valid. Renews it automatically if needed.
2. Catalog fetch — Pulls items, categories, modifiers, taxes, and images from the Square Catalog API.
3. Inventory fetch — Retrieves stock counts for all item variations across the selected locations.
4. Product mapping — Creates or updates J2Commerce products and variants. New items use the defaults from the Products tab. Existing mapped items are updated without overwriting fields you have edited manually in J2Commerce.
5. Price calculation — Applies markup (if configured) and writes prices to J2Commerce product records.
6. Square badge on product form — Once a product is mapped, opening it in J2Commerce shows a small Square: Synced badge with a direct link to view the item in the Square Dashboard.

Tips

• Start in sandbox mode. Configure everything with a sandbox Square account first so test products do not appear in your live store.
• Set Import Status to Unpublished. Import your full catalog, review each product, configure J2Commerce-specific details such as shipping weight and dimensions, then publish in batches. This prevents partially configured products from appearing in the storefront.
• Use J2Commerce Tags for category mapping first. It is more flexible and easier to re-map. Switch to Joomla Content Categories only if your navigation depends on category-based menus.
• Keep webhooks enabled. Cron jobs that run every 30–60 minutes mean inventory changes from Square can lag. Webhooks push changes within seconds.
• Monitor the Activity Log. Keep Log Retention (days) at 30 or more during initial setup so you can review what imported, what was skipped, and what errored.
• Square modifiers become product options. If your Square items use modifiers such as "Gift wrap" or "Size", they are created as J2Commerce product options and option values after import. Review them and choose the right Option Field Type (dropdown, radio buttons, or color swatches) on the Products tab.

Troubleshooting

Connect to Square Shows a Blank Page (Sandbox)

Cause: Square sandbox requires an active test seller session in your browser before the OAuth consent page renders. Without one, Square's authorize page returns an error and the popup shows a blank or broken page. the Square message reads: "To start the OAuth flow for a sandbox account, first launch the seller test account from the Developer Console."

Solution:

1. In the Square Developer Dashboard, open your sandbox app.
2. Click Sandbox Test Accounts (or Default Test Account) in the left sidebar.
3. Click Open next to a test seller. A new browser tab opens and logs that test seller into Square sandbox.
4. Keep that tab open and return to J2Commerce.
5. Click Connect to Square again.

The consent screen now recognizes the active seller session and renders correctly. This step is only needed for sandbox — production OAuth does not require it.

Test Connection Returns "Failed"

Cause: The Application ID, Application Secret, or access token saved in J2Commerce is missing, incorrect, or expired.

Solution: Return to the Connection tab. Re-enter the Application ID and Application Secret from the Square Developer Dashboard -> OAuth section. Click Save, then click Test Connection again. If you are using a Manual Access Token, generate a fresh one from the Square Developer Console and paste it in.

"Redirect URI Mismatch" Error from Square During OAuth

Cause: The Redirect URI registered in the Square Developer Dashboard does not exactly match the Redirect URI shown in J2Commerce's Connection tab.

Solution: Copy the Redirect URI from J2Commerce's Connection tab — including the full URL with all query parameters such as tmpl=component. Go to Square Developer Dashboard -> your app -> OAuth -> Redirect URL, paste the exact URI, and click Save. Even a single character difference causes Square to reject the request.

Imported Products Are Not Visible in the Storefront

Cause: The Import Status field on the Products tab defaults to Unpublished.

Solution: Either change Import Status to Published before running a fresh import, or go to J2Commerce -> Catalog -> Products, filter by unpublished, and manually publish each imported product after reviewing it.

Inventory Counts Look Incorrect

Cause: The Inventory Aggregation setting on the Locations tab controls how stock across multiple Square locations is combined.

Solution: Open the Locations tab and review Inventory Aggregation. Sum across locations adds the quantity from every selected location. Primary location only uses the first selected location's count. If you have stock spread across several locations and only see one location's count, switch to Sum across locations and save.

Webhooks Are Enabled but No Live Updates Arrive

Cause: The webhook subscription may not exist in the Square Developer Dashboard, the Notification URL may be missing the Queue Key, or Square cannot reach your Joomla site.

Solution:

1. Go to the OAuth tab inside the Square Integration dashboard and confirm a Webhook ID is shown. If the field is empty, follow the Webhook Setup steps in the Square Developer Dashboard again; J2Commerce does not register the subscription for you.
2. Confirm your Joomla site is accessible over HTTPS from the public internet. Square must be able to POST webhook payloads to your site. Sites on localhost or behind a firewall will not receive webhooks.
3. Verify the Webhook Signature Key on the Connection tab matches the key Square generated for your subscription.
4. Confirm the Notification URL in Square includes your Queue Key, and that the key has not been regenerated since you saved the subscription.
5. As a fallback, run the square_sync_inventory cron job more often while you investigate.

Sync Is Paused and I See Error Banners on the J2Commerce Dashboard

Cause: The number of consecutive sync errors exceeded the Error Threshold on the Advanced tab. J2Commerce pauses API calls automatically to avoid hammering a Square API that is returning errors.

Solution:

1. Open the Activity Log tab in the Square Integration dashboard and identify the error messages.
2. Fix the underlying issue — for example, reconnect OAuth if the token expired, or correct a misconfigured location ID.
3. Click Resume Sync in the Quick Actions panel on the Overview tab.
